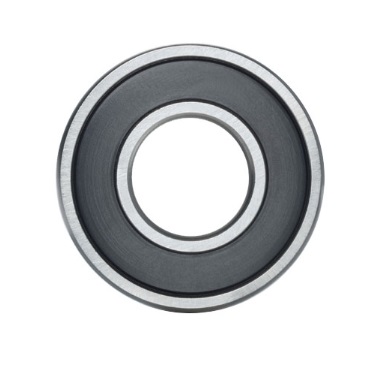

61807-2RSR-C3 Deep Groove Ball Bearings 2RSR Design, Self-retaining, Lip Seals
The 61807-2RSR-C3 Single-row deep groove ball bearings are widely used in various rotating machinery, such as: electric motors (general-purpose motors, household appliances), automotive wheel hubs, industrial gearboxes, agricultural machinery, pumps and compressors, conveying equipment, and power tools.
The 61807-2RSR-C3 bearing is a Deep groove ball bearings 2RSR design, self-retaining, Lip seals with an inner diameter of 35 mm , an outer diameter of 47 mm, a width of 7 mm. GCr15SiMn rings, Its dynamic radial rated load is approximately 4383 N, its static radial rated load is approximately 3157 N. It uses C3 standard radial clearance, 2RSR = Lip seals on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
61807-2RSR-C3 bearings ( 35 mm x 47 mm x 7 mm) have the advantages of simple structure, ability to withstand radial and bidirectional axial loads, low friction, and high speed, it is suitable for high-speed, low-noise applications, and are therefore widely used in the Motors, home appliances, automobiles, pumps, compressors, conveying equipment and general industrial machinery.
| Part Number | 61807-2RSR-C3 |
| Reference From | FAG 61807-2RSR-C3 |
| Bearing Type | Deep groove ball bearings 2RSR design, self-retaining, Lip seals |
| Series | 618..-2RSR |
| Sealing | 2RSR = Lip seals on both sides |
| Cage | JN = Stamping steel cage |
| Radial internal clearances | C3 |
| Weight [lb] | 0.066 |
| Cr Radial Dynamic [lbf] | 985 |
| C0r Radial static [lbf] | 709 |
| Cur Radial Fatigue [lbf] | 61 |
| nG Limiting speed [rpm] | 7287 |
| Operating temperature - T(min) [°C] | -30 |
| Operating temperature - T(max) [°C] | 110 |
| d φ Inside [inch] | 1.378 |
| D Φ Outside [inch] | 1.850 |
| B Width [inch] | 0.276 |
| D2 [inch] | 1.744 |
| r(min.) [inch] | 0.012 |
| d1 [inch] | 1.535 |
| Mounting dimensions | |
| da(min.) [inch] | 1.457 |
| Da(max.) [inch] | 1.772 |
| ra(max.) [inch] | 0.012 |
The 61807-2RSR-C3 Single-row deep groove ball bearings mainly consist of an inner ring, outer ring, steel balls, and a cage. The raceways are deep grooves, with the steel balls making four-point contact with the raceways. The inner and outer rings can be separable or integrated. They are available in various forms, including open, with dust covers, and with seals.
Single-row deep groove ball bearings have a simple structure and are the most widely used. They can simultaneously withstand radial loads and bidirectional axial loads, making them suitable for high-speed operation. They have a low coefficient of friction, low noise, and are easy to install and maintain. Versions with seals or dust covers effectively prevent contaminant intrusion and are suitable for various operating conditions.
