6006-C-2HRS-C4>V Deep Groove Ball Bearings 2HRS Design

🔍

6006-C-2HRS-C4>V

Bore Diameter:30 mm

Outside Diameter:55 mm

Width:13 mm

Weight:0.113 kg

Min. Order:1 Piece

The 6006-C-2HRS-C4>V Single-row deep groove ball bearings are widely used in various rotating machinery, such as: electric motors (general-purpose motors, household appliances), automotive wheel hubs, industrial gearboxes, agricultural machinery, pumps and compressors, conveying equipment, and power tools.

The 6006-C-2HRS-C4>V bearing is a Deep groove ball bearings 2HRS design with an inner diameter of 30 mm , an outer diameter of 55 mm, a width of 13 mm. It typically uses Class6 (P6) grade precision tolerances and GCr15SiMn rings, Its dynamic radial rated load is approximately 14416 N, its static radial rated load is approximately 8230 N. It uses C4 standard radial clearance, 2HRS = Lip seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

30 mm

Outside Diameter:

55 mm

Thickness:

13 mm

Weight:

0.113 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

14416 N

Static load Capacity, Radial (Cor):

8230 N

Fatigue Load Limit, Radial:

481 N

Limiting speed (Oil rpm):

10467

Specifications:

Old Designations:

6006C.2HRS.C4>V

Structure:

Single row deep groove ball bearings

Number of Rows:

one

Radial Clearance Trade No.:

Precision Rating:

Class6 (P6)

Bearing Material:

GCr15SiMn

Cage Type:

JN = Stamping steel cage

Seals Type:

2HRS = Lip seal on both sides

Bore Type:

Z = Cylindrical bore

Operating Temperature:

-20 to 100 °C

Series:

60..-C-2HRS

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

6006-C-2HRS-C4>V bearings ( 30 mm x 55 mm x 13 mm) have the advantages of simple structure, ability to withstand radial and bidirectional axial loads, low friction, and high speed, it is suitable for high-speed, low-noise applications, and are therefore widely used in the Motors, home appliances, automobiles, pumps, compressors, conveying equipment and general industrial machinery.

Part Number	6006-C-2HRS-C4>V
Reference From	FAG 6006-C-2HRS-C4>V
Bearing Type	Deep groove ball bearings 2HRS design
Series	60..-C-2HRS
Internal design	C = Generation C
Sealing	2HRS = Lip seal on both sides
Cage	JN = Stamping steel cage
Radial internal clearances	C4
Heat stabilization	SN = (up to 120 °C)
Lubricant	GA14 = Lithium soap Mineral oil (Low-noise ball bearing grease)
Weight [lb]	0.249
C_r Radial Dynamic [lbf]	3240
C_0r Radial static [lbf]	1850
C_ur Radial Fatigue [lbf]	108
n_G Limiting speed [rpm]	10467
Operating temperature - T(min) [°C]	-20
Operating temperature - T(max) [°C]	100
d φ Inside [inch]	1.181
D Φ Outside [inch]	2.165
B Width [inch]	0.512
d₂ [inch]	1.444
D₂ [inch]	1.977
r(min.) [inch]	0.039
D₁ [inch]	1.890
d₁ [inch]	1.496
Mounting dimensions
d_a(min.) [inch]	1.362
D_a(max.) [inch]	1.984
r_a(max.) [inch]	0.039
Coefficient - F₀ [inch]	14.8

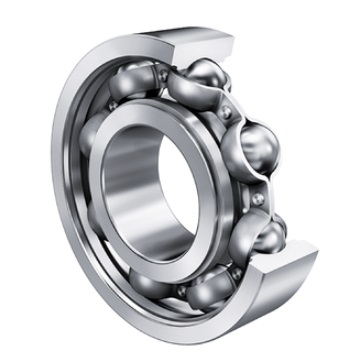

The 6006-C-2HRS-C4>V Single-row deep groove ball bearings mainly consist of an inner ring, outer ring, steel balls, and a cage. The raceways are deep grooves, with the steel balls making four-point contact with the raceways. The inner and outer rings can be separable or integrated. They are available in various forms, including open, with dust covers, and with seals.

Single-row deep groove ball bearings have a simple structure and are the most widely used. They can simultaneously withstand radial loads and bidirectional axial loads, making them suitable for high-speed operation. They have a low coefficient of friction, low noise, and are easy to install and maintain. Versions with seals or dust covers effectively prevent contaminant intrusion and are suitable for various operating conditions.
