573335 Bore 368.3 Mm, Tapered Roller Bearings, Double Row, Inch Dimensions
The 573335 Rolling mill bearings are mainly suitable for applications such as floating ends that bear medium to heavy radial loads and need to accommodate shaft thermal expansion, or roll necks that need to bear combined radial and axial loads, as well as gear drives.
The 573335 bearing is a Tapered Roller Bearings, double row, in inch dimensions O-arrangement with an inner diameter of 368.3 mm , an outer diameter of 596.9 mm, a width of 203.2 mm. Bearing steel rings, Bearing steel rolling mlement. It primarily bears Radial and axial loads, its static radial rated load is approximately 5300000 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
573335 bearings ( 368.3 mm x 596.9 mm x 203.2 mm) have the advantages of Extremely high load-bearing capacity and rigidity, and are therefore widely used in the Hot rolling, cold rolling, and wire rod mills.
| Part Number | 573335 |
| Interchangeable | FAG 573335 |

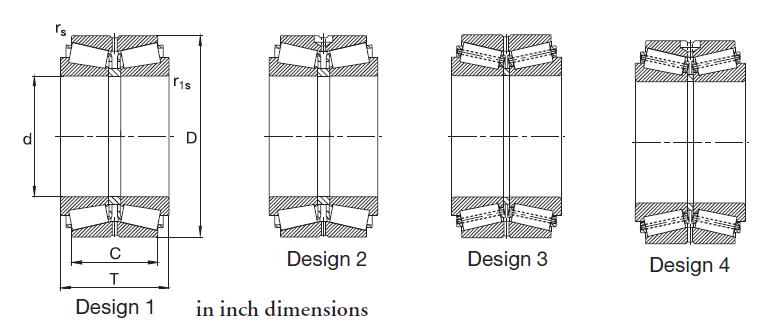

| Desgin Figure | 2 |
| Cage | Stamping steel cage |
| Arrangement | back-to-back (<>) |
| Seal | Open |
| Bearing Type | Tapered Roller Bearings, double row, in inch dimensions O-arrangement |
| Design type | TDO |
| Equivalent number (TDO-Type) | EE181453.351CD |
| Bearing Weight [lb] | 405.646 |
| d φ Inside [inch] | 14.500 |
| D Φ Outside [inch] | 23.500 |
| T Cone [inch] | 8.000 |
| C Cup [inch] | 5.250 |
| rs min Chamfer Cup | 2.3 mm |
| r1s min Chamfer Cone | 9.7 mm |
| C0r Radial Static [lbf] | 1191440 |
| Cr Radial Dynamic ISO 281 [lbf] | 629440 |
| Cr90 Equivalent load rating [lbf] | 183212 |
| Ca90 Equivalent load rating [lbf] | 75308 |
| Factor | |
| e | 0.42 |
| K Thrust factor | 1.40 |
