558-S/553-SB Tapered Roller Bearing Size 2.3617x5.1159x1.444 Inch

🔍

558-S/553-SB

Bore Diameter:59.987 mm

Outside Diameter:129.944 mm

Width:36.678 mm

Weight:2.46 kg

Min. Order:1 Piece

The 558-S/553-SB bearing is a Tapered Roller Bearings with an inner diameter of 59.987 mm , an outer diameter of 129.944 mm, a width of 36.678 mm. It typically uses Standard grade precision tolerances and features a Steel cage, Chrome Steel (Gcr15) rings. It primarily bears Radial and Thrust, It uses Standard standard radial clearance, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Construction, Transportation and Agricultural Machinery, Conveyor Plants, Hydraulic Jacks, and other industry.

Dimensions:

Inside Diameter:

59.987 mm

Outside Diameter:

129.944 mm

Thickness:

36.678 mm

Weight:

2.46 KG

Chamfer (R):

3.6

Cone Width (B):

36.678

Cup Width (C):

30.163

Chamfer (r):

3.3

Specifications:

HS Code:

8482500090

Structure:

Roller Bearing

Number of Rows:

Single

Demensions:

59.987x129.944x36.678

Brand:

Neutral Product

Radial Clearance Trade No.:

Standard

Precision Rating:

Standard

Load Direction:

Radial and Thrust

Bearing Material:

Chrome Steel (Gcr15)

Cage material:

Steel

Roller Material:

Chrome Steel (Gcr15)

Operating Temperature Range:

-40℃ to 120℃

System of Measurement:

Inch

Series:

555

Rolling Element:

Roller

Cone Number:

558-S

Cup Number:

553-SB

Transaction Information:

Transport Package:

Standard Export Package

Shipping Ways:

by Sea or Air

Country of Origin:

China

Stock:

100 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

558-S/553-SB Tapered Roller Bearing, Single Row, With Flange.

Cone Part No.: 558-S

Cup Part No.: 553-SB

Size (Inner Dia x Outer Dia x Assembly Width): 2.3617x5.1159x1.444 inch (59.987x129.944x36.678mm)

Mini Operating Temperature:-40 °C

Max Operating Temperature:120 °C

558-S/553-SB tapered roller bearing (TSF type) consists of two main separable parts: the cone (inner ring) 558-S assembly and the cup (outer ring) 553-SB. It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.

558-S/553-SB Tapered Roller Bearing
Type:	TSF (Tapered Single)
Series:	555
Cone Part Number:	558-S
Cup Part Number:	553-SB
Bearing Weight (kg)	2.46
Main Dimensions:
	inch	mm
d-Bore:	2.3617	59.987
D-Cup Outer Diameter:	5.1159	129.944
D1-Flange Outer Diameter:	5.3553	136.025
B-Cone Width:	1.444	36.678
C-Cup Width:	1.1875	30.163
C1-Cup Flange Width:	0.2500	6.35
T1 - Bearing Width to Flange:	0.5625	14.288
Bearing Type:	Roller
Bearing Material:	Chrome Steel
Cage Material:	Stamped Steel
Precision:	Standard Precision
Load Direction:	Combined Radial and Thrust
Country of Origin:	China
HS Code:	8482500090

Applicatioins: Gearing Systems and Transmissions, Thermal Power Coal Transporters, Port Equipment, Rubber and other Industrial applications, Machine Tool Spindles, Gear Reducer, Automotive Drive Axle, Aircraft wheels, Agricultural Wheels, Tensioning Roller, Raking Machine, Construction and Mining Equipment, Railroad Axle-box, etc.

All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.

Share this product to:

Let more people see your product

How can you buy 558-S/553-SB Tapered Roller Bearing Size 2.3617x5.1159x1.444 Inch on the Internet?
High quality 558-S/553-SB ( 2.46 kg Mass, ID: 59.987 mm OD: 129.944 mm WD: 36.678 mm , 555 Series , Single Rows , Standard Radial Clearance , Standard Accuracy Class , Chrome Steel (Gcr15) Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 558-S/553-SB. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- 30316 Tapered Roller Bearing 80x170x42.5mm
- 30316 Roller Bearing / Tapered Roller Bearing Bearing Model No. :30316 Type: Tapered Roller

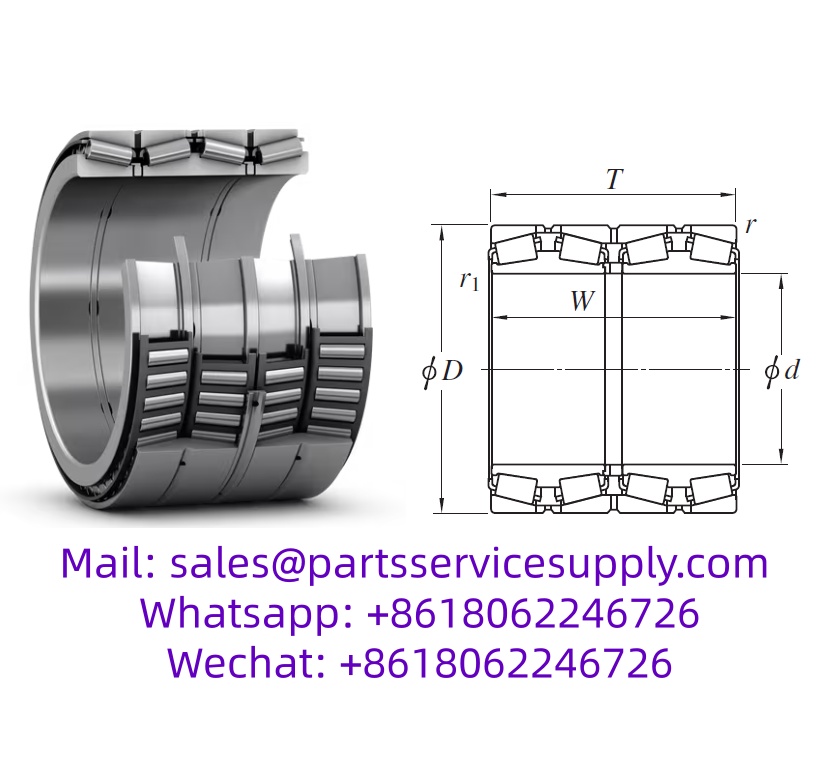

- 37292 Tapered Roller Bearing (Size: 460x650x474mm)
