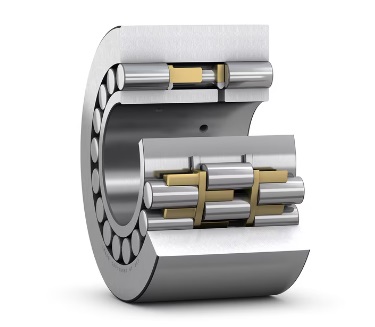

527502C Bore 180 Mm, Support Rollers For Multi-roll Cold Rolling Mills, Machined Brass Cage
The 527502C Backed bearings are suitable for heavy-duty rolling equipment such as multi-roll cold rolling mills. Classic applications include backing rolls in multi-roll mills, straighteners, bending machines, support rolls in Sendzimir mills, and work roll support systems in strip mills.
The 527502C bearing is a Support Rollers for multi-roll cold rolling mills with an inner diameter of 180 mm , an outer diameter of 406.42 mm, a width of 171.04 mm. special hardening rings, Bearing steel rolling mlement. It primarily bears Radial, Its dynamic radial rated load is approximately 2080000 N, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
527502C bearings ( 180 mm x 406.42 mm x 171.04 mm) have the advantages of High rigidity, high load-bearing capacity and precision retention, and are therefore widely used in the Backing for multi-roll mills.
| Part Number | 527502C |
| Interchangeable | FAG 527502C |
| Desgin Figure | 1 |
| Cage | Machined Brass Cage |
| Seal | Open |
| Bearing Type | Support Rollers for multi-roll cold rolling mills |
| Bearing Weight [lb] | 286.598 |
| d φ Inside [inch] | 7.087 |
| D Φ Outside [inch] | 16.001 |
| B Width [inch] | 6.734 |
| Bi Width [inch] | 6.734 |
| H Height [inch] | 4.454 |
| Cr Radial Dynamic [lbf] | 467584 |
| Cr Radial Dynamic - Support roller [lbf] | 411384 |
| Fr Max. load [lbf] | 418128 |
The 527502C Backed bearings primarily consist of an inner ring, an outer ring, single-row, double-row, or triple-row cylindrical rollers, and a cage. The outer ring is exceptionally thick, and the rollers and raceways feature a logarithmic profile design to optimize load distribution and reduce edge stress.
Backed bearings possess extremely high load-carrying capacity, capable of withstanding heavy loads and impact loads, while exhibiting low friction, minimal heat generation, and a long service life. The outer surface of the outer ring also utilizes a logarithmic profile, reducing edge loads during operation and improving operational reliability.
