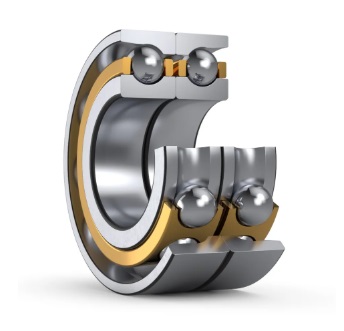

509059A Bore 180 Mm, Angular Contact Ball Bearings, Double Row For Wire Mills, Machined Brass Cage

🔍

509059A

Bore Diameter:180 mm

Outside Diameter:259.5 mm

Width:66 mm

Weight:11.9 kg

Min. Order:1 Piece

The 509059A Rolling mill bearings are mainly suitable for applications such as floating ends that bear medium to heavy radial loads and need to accommodate shaft thermal expansion, or roll necks that need to bear combined radial and axial loads, as well as gear drives.

The 509059A bearing is a Angular Contact Ball Bearings, double row non-separable Thrust bearings for wire mills with an inner diameter of 180 mm , an outer diameter of 259.5 mm, a width of 66 mm. Bearing steel rings, Bearing steel rolling mlement. It primarily bears Radial and axial loads, Its dynamic radial rated load is approximately 196000 N, its static radial rated load is approximately 305000 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

180 mm

Outside Diameter:

259.5 mm

Thickness:

66 mm

Weight:

11.9 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

196000 N

Static load Capacity, Radial (Cor):

305000 N

Specifications:

Structure:

Double row angular contact ball bearings

Number of Rows:

Two

Load Direction:

Radial and axial loads

Bearing Material:

Bearing steel

Cage Type:

Machined Brass Cage

Seals Type:

Open

Rolling Mlement Material:

Bearing steel

Bore Type:

Cylindrical

System of Measurement:

metric

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

509059A bearings ( 180 mm x 259.5 mm x 66 mm) have the advantages of Extremely high load-bearing capacity and rigidity, and are therefore widely used in the Hot rolling, cold rolling, and wire rod mills.

Part Number	509059A
Interchangeable	FAG 509059A
Desgin Figure	2
Cage	Machined Brass Cage
Arrangement	DB (<>) Back-to-Back
Seal	Open
Bearing Type	Angular Contact Ball Bearings, double row non-separable Thrust bearings for wire mills
Bearing Weight [lb]	26.235
d φ Inside [inch]	7.087
D Φ Outside [inch]	10.217
B Width [inch]	2.598
B_i Width [inch]	2.598
r_s min Chamfer	2 mm
r_1s min Chamfer	2 mm
C_r Radial Dynamic [lbf]	44060
C_0r Radial Static [lbf]	68564
D₁ min [inch]	7.441
D₂ max [inch]	9.882
r_g max Fillet radius [inch]	0.079
r_g1 max Fillet radius [inch]	0.079
