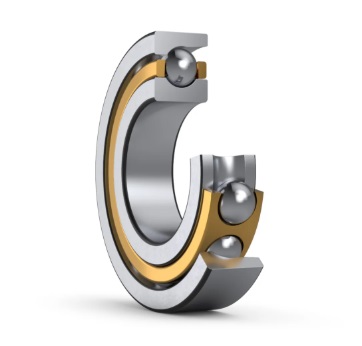

507686A Bore 220 Mm, Angular Contact Ball Thrust Bearings For Oil Film Bearings, Machined Brass Cages
The 507686A Rolling mill bearings are mainly suitable for applications such as floating ends that bear medium to heavy radial loads and need to accommodate shaft thermal expansion, or roll necks that need to bear combined radial and axial loads, as well as gear drives.
The 507686A bearing is a Angular Contact Ball Thrust Bearings, single row non-separable for oil film bearings with an inner diameter of 220 mm , an outer diameter of 300 mm, a width of 35 mm. Bearing steel rings, Bearing steel rolling mlement. It primarily bears Radial and axial loads, Its dynamic radial rated load is approximately 163000 N, its static radial rated load is approximately 216000 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
507686A bearings ( 220 mm x 300 mm x 35 mm) have the advantages of Extremely high load-bearing capacity and rigidity, and are therefore widely used in the Hot rolling, cold rolling, and wire rod mills.
| Part Number | 507686A |
| Interchangeable | FAG 507686A |
| Desgin Figure | 1 |
| Cage | machined brass cages |
| Seal | Open |
| Bearing Type | Angular Contact Ball Thrust Bearings, single row non-separable for oil film bearings |
| Bearing Weight [lb] | 15.829 |
| d φ Inside [inch] | 8.661 |
| D Φ Outside [inch] | 11.811 |
| B Width [inch] | 1.378 |
| Bi Width [inch] | 1.496 |
| rs min Chamfer | 1.1 mm |
| r1s min Chamfer | 1.1 mm |
| Cr Radial Dynamic [lbf] | 36642 |
| C0r Radial Static [lbf] | 48556 |
| D1 min [inch] | 8.898 |
| D2 max [inch] | 11.575 |
| rg max Fillet radius [inch] | 0.043 |
| rg1 max Fillet radius [inch] | 0.043 |
| Y | 0.57 |
| Y0 | 0.26 |
