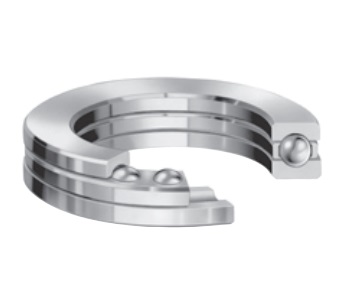

50 TVB 190 Ball Thrust Bearing Type TVB

🔍

50 TVB 190

Bore Diameter:127 mm

Outside Diameter:184.15 mm

Width:41.275 mm

Weight:3.4 kg

Min. Order:1 Piece

The 50 TVB 190 Thrust ball bearings are widely used in various small and medium-sized equipment requiring axial load capacity, including: automotive steering systems, machine tool spindles, industrial gearboxes, crane hooks, centrifuges, and precision instruments.

The 50 TVB 190 bearing is a Ball Thrust Bearing Type TVB with an inner diameter of 127 mm , an outer diameter of 184.15 mm, a width of 41.275 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic axial rated load is approximately 167036 N, its static axial rated load is approximately 580806 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

127 mm

Outside Diameter:

184.15 mm

Thickness:

41.275 mm

Weight:

3.4 KG

Dynamic load Capacity, axial:

167036 N

Static load Capacity, axial:

580806 N

Specifications:

Structure:

Single direction thrust ball bearings

Number of Rows:

One

Precision Rating:

PN (ABEC-1)

Bearing Material:

bearing steel

Rolling Mlement Material:

bearing steel

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 110 °C

System of Measurement:

Metric

Series:

TVB

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

50 TVB 190 bearings ( 127 mm x 184.15 mm x 41.275 mm) have the advantages of Suitable for high-speed applications, capable of withstanding unidirectional axial loads, with low friction and easy installation, and are therefore widely used in the Machine tool spindles, automotive steering systems, pumps, industrial machinery and instruments.

Part Number	50 TVB 190
Bearing Type	Ball Thrust Bearing Type TVB
Interchangeable	TIMKEN 50 TVB 190
Manufacturer Part Code	50TVB190
Series	TVB
Units	Metric
Tolerance class	PN (ABEC-1)
C_0a Axial Static [lbf]	130565
C_a Axial Dynamic [lbf]	37549
d φ Inside [inch]	5.0000
D Φ Outside [inch]	7.2500
T Width [inch]	1.6250
r Fillet Radius [inch]	0.0945
E (Max) Shoulder Diameter Housing [inch]	5.5315
H (Min) Shoulder Diameter Shaft [inch]	6.7205
Weight [lb]	7.4956

The 50 TVB 190 Thrust ball bearings mainly consist of a shaft ring (which mates with the shaft), a housing ring (which mates with the bearing housing), steel balls, and a cage. They feature a separable design for easy installation and maintenance. Some models include dust covers or sealed structures.

Thrust ball bearings have high axial load capacity, are suitable for bearing pure axial loads, have high limiting speeds, low friction coefficients, and smooth operation. Their separable structure simplifies installation, results in a compact size, and minimizes space requirements.

Share this product to:

Let more people see your product

How can you buy 50 TVB 190 Ball Thrust Bearing Type TVB on the Internet?
High quality 50 TVB 190 ( 3.4 kg Mass, ID: 127 mm OD: 184.15 mm WD: 41.275 mm , TVB Series , One Rows , PN (ABEC-1) Accuracy Class , bearing steel Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 50 TVB 190. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

50 TVB 190 Ball Thrust Bearing Type TVB
