496D/493 TDI Type Tapered Roller Bearing 80.963x136.525x60.325mm
The 496D/493 bearing is a Tapered Roller Bearings with an inner diameter of 80.963 mm , an outer diameter of 136.525 mm, a width of 60.325 mm. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
496D/493 Tapered Roller Bearings

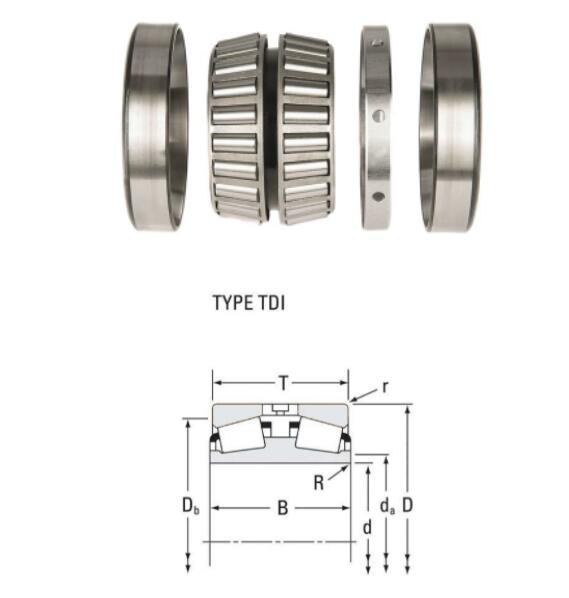

Bearing Type: TDI (Tapered Double Inner)
Size: 3.1875x5.375x2.375 inch (80.963x136.525x60.325 mm)
Inner Diameter: 3.1875 inch (80.963 mm)
Outer Diameter: 5.375 inch (136.525 mm)
Thickness / Width: 2.375 inch (60.325 mm)
|
Dimensions: |
|
|
d - Bore |
3.1875 inch (80.963 mm) |
|
D - Cup Outer Diameter |
5.375 inch (136.525 mm) |
|
B - Double Cone Width |
2.344 inch (59.538 mm) |
|
C - Cup Width |
0.875 inch (22.225 mm) |
|
T - Bearing Width across Cups |
2.375 inch (60.325 mm) |
|
Bearing Weight |
|
|
3.4 kgs |
|
|
Application: |
|
|
Agriculture, construction and mining equipment, sports robot combat, axle systems, gearbox, engine motors and reducers, propeller shaft, railroad axle-box, differential, wind turbines, and etc. |
|
|
Packing Type: |
|
|
Carton Boxes + Plywood Case |
|
|
Delivery Time: |
|
|
1-2 working days for stock; 25-35 working days for bulk production. |
|
|
Payment Term: |
|
|
by T/T / Alipay |
|
|
Delivery Term: |
|
|
FOB / CIF / CFR by Sea, by Air, or by International Express. |
|
TDI Bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more detail information of 496D/493 bearing, please feel free to mail us at [email protected], or contact us by Wechat or Whatsapp at +8618062246726.
