495A-493 Tapered Roller Bearings For Machinery
495A-493
Bore Diameter:76.2 mm
Outside Diameter:136.525 mm
Width:30.163 mm
Weight:1.8 kg
Min. Order:2 Piece
The 495A-493 bearing is a Tapered Roller Bearings with an inner diameter of 76.2 mm , an outer diameter of 136.525 mm, a width of 30.163 mm. It typically uses p0/p6/p5/p4/p2 grade precision tolerances and features a Steel cage, Steel balls, steel rings. It primarily bears Radial Bearing, Its dynamic radial rated load is approximately 154000, its static radial rated load is approximately 216000. It uses C0 C2 C3 C4 C5 standard radial clearance, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Feature: Reducer, Papermaking Machinery, Railway Vehicle
Application: Automotive, rolling mill, mining, metallurgical, skateboard etc.
×
Detailed description
| 495A-493 Tapered Roller Bearings for Machinery | |||
| Bearing NO.: | 495A-493 | Also Know as: | 483-90091 |
| Weight (kg): | 1.8 | Material | Bearing steel |
| Series: | 495 | Db (mm): | 121.92 |
| Cone Part NO.: | 495A | db (mm): | 92 |
| Cup Part NO.: | 493 | Da(mm): | 131.06 |
| Bore (mm)b: | 76.2 | da(mm): | 86 |
| Cup Outer Diameter(mm)D: | 136.525 | r (mm): | 3.3 |
| Cone Width(mm)B: | 29.769 | R(mm): | 3.60 |
| Cup Width(mm)C: | 22.225 | Ab (mm): | 3 |
| Bearing Width (mm)T: | 30.163 | Aa (mm): | 1.8 |
| Dynamic load rating (C₉₀)N: | 40000 | a: | -0.8 |
| Dynamic load rating (C₁)N: | 1540000 | K: | 1.31 |
| Static Radial Rating (C0 )N: | 216000 | e: | 0.44 |
| Dynamic Thrust Ratin(Ca₉₀)N: | 30500 | Cg | 0.125 |
| Applicable Industries: | Manufacturing Plant,Home Use, Printing Shops,Construction works,Advertising Company |
Contact Bonnie: | Email:[email protected] |
Share this product to:
Let more people see your product
-

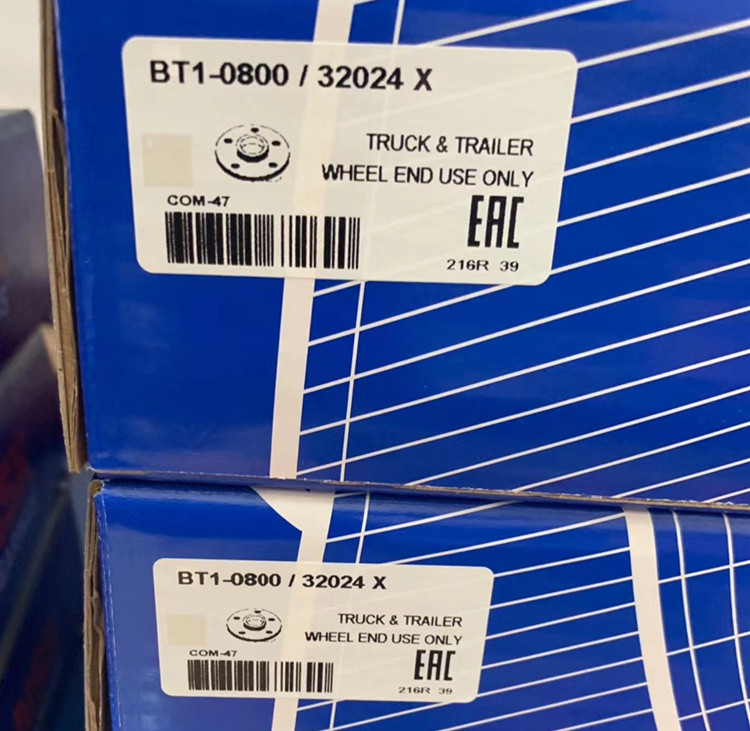

- BT1-0800 32024X Radial Taper Roller Bearing 40.32x180x120 mm
- BT1-0800 32024X Radial Taper Roller Bearing 40.32x180x120 mm Inner Bore(Metric):40.32 mm Outer
-
- LM654649-90074 Long Life Tapered Roller Bearings for Machinery
- LM654649-90074accommodates combined loads and provides low friction during operation. By adjusting one
-
- 9220 High Speed Tapered Roller Bearings for Automobile
- 9220 This bearing construction accommodates combined loads and provides low friction during
-
- VKHB2270 Wheel bearing Front Axle 19X45.2X15.5 mm
- VKHB2270 Wheel bearing Front Axle 19X45.2X15.5 mm Inner Bore(Metric):19 mm Outer Diameter(Metric):45.5
-
- C2234 C3 CARB Toroidal Bearing - 170x310x86 mm
- C2234 C3 CARB Toroidal Bearing - 170X310x86mm Outer Diameter (Metric): 170
-
- KLM29749C-KLM29710C High Speed Tapered Roller Bearings for Auto
- KLM29749C-KLM29710C accommodates combined loads and provides low friction during operation. By adjusting
-

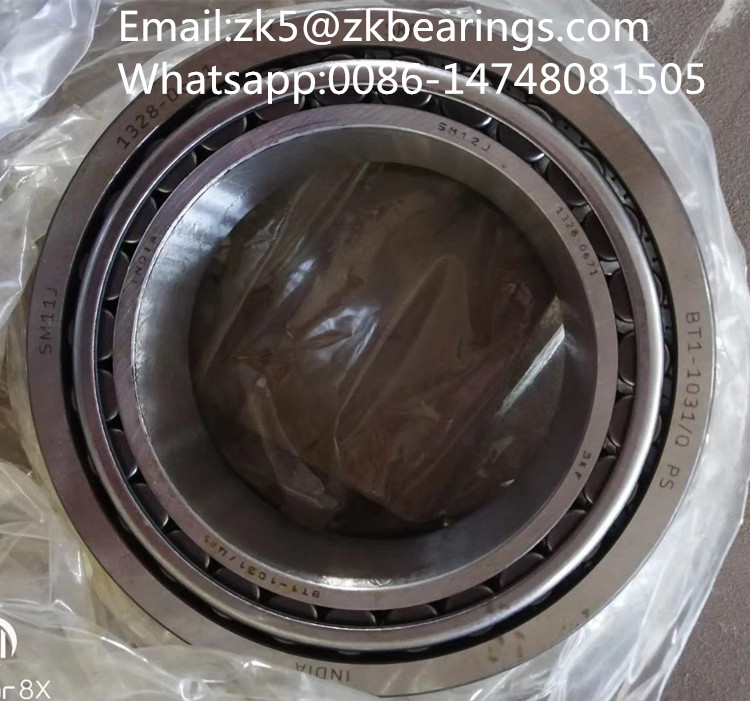

- BT1-0589 VKHB 2698 MY 30311 Tapered Roller Bearing 55x120x31.5 mm
