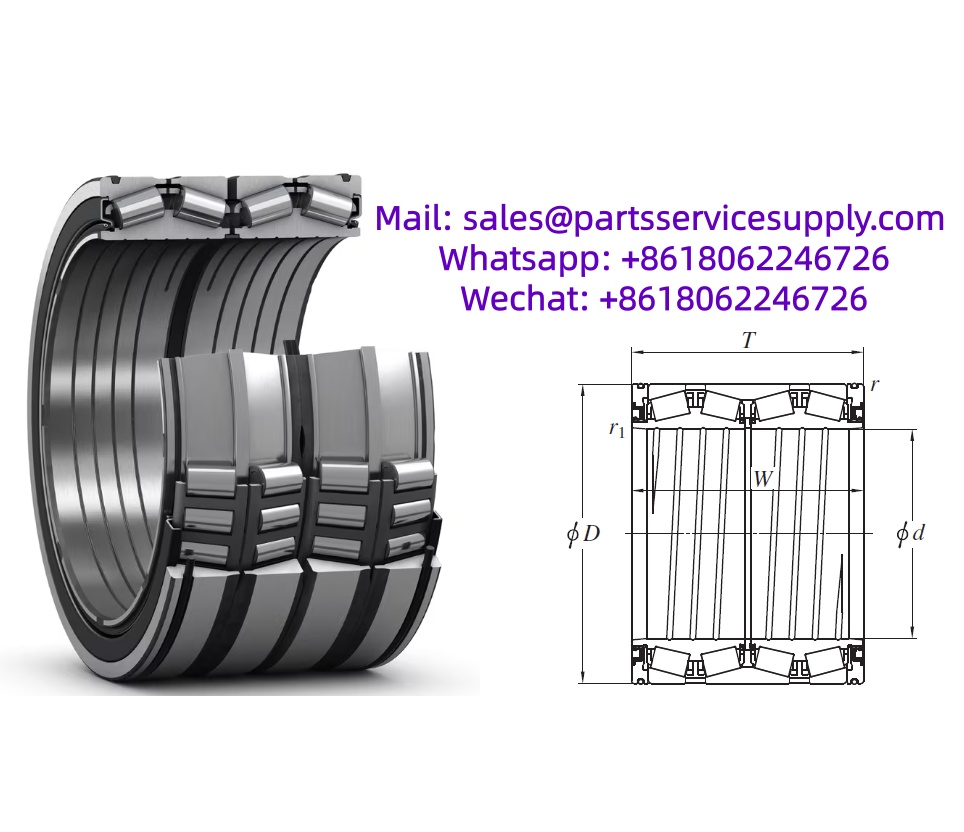

47TS573824A Tapered Roller Bearing (Size: 285.75x380.898x244.475mm)
The 47TS573824A bearing is a Tapered Roller Bearings with an inner diameter of 285.75 mm , an outer diameter of 380.898 mm, a width of 244.475 mm. It typically uses Standard grade precision tolerances and features a Steel cage, Chrome Steel rings. Its dynamic radial rated load is approximately 2500 (kN), its static radial rated load is approximately 4600 (kN). Sealed type, Nitrile Rubber. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Application: Low- and medium-speed rolling mills
47TS573824A Tapered Roller Bearing, Sealed Type, Four Row, High Load Capacity, High Speed, Low Friction, and Long Service Life.
Size: 285.75x380.898x244.475mm
Inside Diameter (d): 285.75mm
Outside Diameter (D): 380.898mm
Width (T): 244.475mm
Ring Material: Chrome Steel
Roller Material: Chrome Steel
Cage Material: Steel
Number of Row: 4
Working Temperature: -40°C to 120°C
Tolerance Class: Normal
HS Code: 8482500090
|
Sealed Type Four Row Tapered Roller Bearing |
|||||||
|
Bearing No. |
Main Dimensions (mm) |
Basic Load Ratings (kN) |
Weight |
||||
|
d |
D |
T |
W |
Cr |
Cor |
kg |
|
|
47TS573824A |
285.75 |
380.898 |
244.475 |
244.475 |
2500 |
4600 |
73.2 |
The four row tapered roller bearing with cylindrical bore is designed to maximize the load capacity with minimum space, and is widely used for roll neck of lower, medium speed rolling mills.
The bearing of this type is made up of one double outer ring, two single row outer rings, two double inner rings and inner ring spacer/outer ring spacer.
Since each component is not interchangeable, it is necessary to assemble each component as specified with care taken to the matching marks marked on the bearing.
Typical Applications:
Because of their rugged design, these bearings are almost exclusively used in heavy industrial and manufacturing equipment. They are a staple component in:
Rolling Mills: Used on the roll necks where extremely high radial loads and continuous stress occur.
Metal Processing Equipment: Heavy-duty gearboxes and screw-down mechanisms.
All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.
