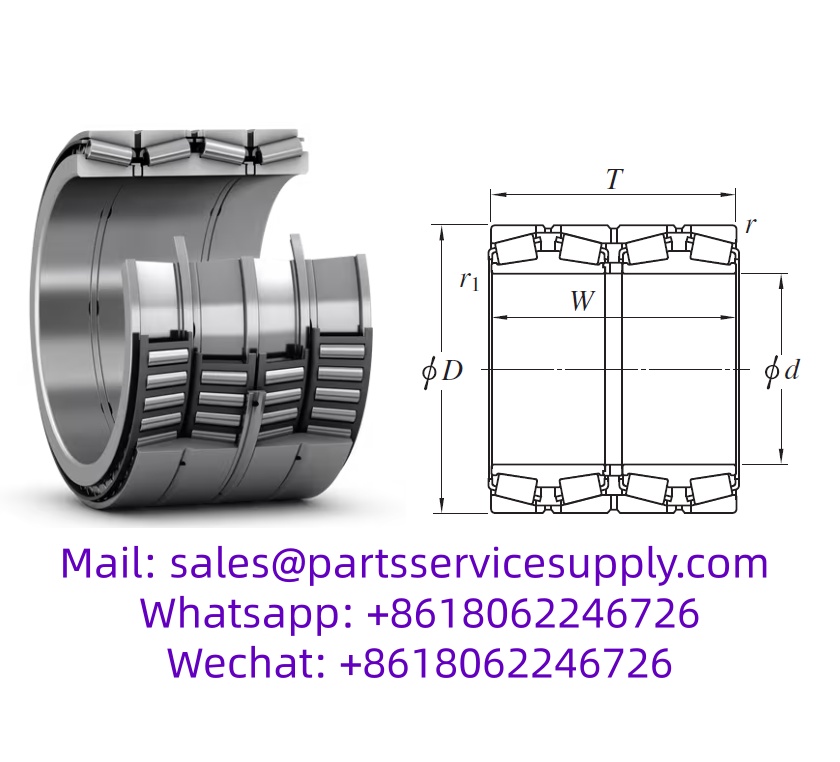

47T130103 Tapered Roller Bearing (Size: 650x1030x558.5mm)

🔍

47T130103

Bore Diameter:650 mm

Outside Diameter:1030 mm

Width:558.5 mm

Weight:1850 kg

The 47T130103 bearing is a Tapered Roller Bearings with an inner diameter of 650 mm , an outer diameter of 1030 mm, a width of 558.5 mm. It typically uses Standard grade precision tolerances and features a Steel cage, Chrome Steel rings. Its dynamic radial rated load is approximately 20000 (kN), its static radial rated load is approximately 36200 (kN). together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Low- and medium-speed rolling mills

Dimensions:

Inside Diameter:

650 mm

Outside Diameter:

1030 mm

Thickness:

558.5 mm

Weight:

1850 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

20000 (kN)

Static load Capacity, Radial (Cor):

36200 (kN)

Specifications:

HS Code:

8482500090

Structure:

Roller Bearing

Number of Rows:

Four

Demensions:

650x1030x558.5

Brand:

Neutral Product

Precision Rating:

Standard

Bearing Material:

Chrome Steel

Cage material:

Steel

Roller Material:

Chrome Steel

Bore Type:

Cylindrical

Operating Temperature Range:

-40℃ to 120℃

Rolling Element:

Roller

Transaction Information:

Transport Package:

Standard Export Package

Shipping Ways:

by Sea or Air

Country of Origin:

China

Stock:

1000 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

47T130103 Tapered Roller Bearing, Four Row, High Load Capacity, High Speed, Low Friction, and Long Service Life.

Size: 650x1030x558.5mm

Inside Diameter (d): 650mm

Outside Diameter (D): 1030mm

Width (T): 558.5mm

Ring Material: Chrome Steel

Roller Material: Chrome Steel

Cage Material: Steel

Number of Row: 4

Working Temperature: -40°C to 120°C

Tolerance Class: Normal

HS Code: 8482500090

Four Row Tapered Roller Bearing (TQO Type)
Bearing No.	Main Dimensions (mm)				Basic Load Ratings (kN)		Weight
Bearing No.	d	D	T	W	Cr	Cor	kg
47T130103	650	1030	558.5	558.5	20000	36200	1850

TQO bearings are directly mounted and comprised of two double inner races, two single and one double outer race, with an inner race spacer and two outer race spacers.

Slots in the inner race spacer permit lubricant to flow from the bearing chamber to the roll neck. The inner race spacers are hardened to minimize face wear.

Size range:

ID 50.800 mm to 1500.000 mm (2.0000 in. to 59.0551 in.)

OD 83.337 mm to 2032.000 mm (3.2810 in. to 80.0000 in.)

Applications: Low- and medium-speed rolling mills

All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.

Share this product to:

Let more people see your product

How can you buy 47T130103 Tapered Roller Bearing (Size: 650x1030x558.5mm) on the Internet?
High quality 47T130103 ( 1850 kg Mass, ID: 650 mm OD: 1030 mm WD: 558.5 mm , Four Rows , Standard Accuracy Class , Chrome Steel Material , 20000 (kN) Radial dynamic , 36200 (kN) Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 47T130103. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- JM734449A/JM734410 (M734410EB) Tapered Roller Bearing
- JM734449A/JM734410 (M734410EB) Tapered Roller Bearing, Matched Bearing Assembly, Direct Mount. Size (Inner Dia
- HM746646/HM746610CD Double Row Tapered Roller Bearing (Size: 9x14x5.9999 Inch)
- HM746646/HM746610CD Tapered Roller Bearing, TDO Type, Double Row, Inch Size. Size (Inner Dia
- 759/752-B Imperial Tapered Roller Bearing Size 3 1/2x6.375x1.9 Inch
- 759/752-B Tapered Roller Bearing, Single Row, With Flange. Cone Part No.: 759 Cup Part
- LM501349/LM501310 (K143254 - LM501310ES) Tapered Roller Bearing (Size: 1.625x2.891x1.68 Inch)
- LM501349/LM501310 (K143254 - LM501310ES) Tapered Roller Bearing, Matched Bearing Assembly, Indirect Mount. Size
- NNCF 4928 V (Alt P/N: SL184928) Size:140x190x50mm Cylindrical Roller Bearing
- NNCF 4928 V (Alt P/N: SL184928) Complement Cylindrical Roller Bearing, Double Row;
- 22226C Spherical Roller Bearing 130x230x64mm
- 22226C Roller Bearing / Spherical Roller Bearing Bearing Model No.: 22226C Type: Spherical Roller
- UCHA205-13 Shaft Dia:13/16 inch (Bearing:UC205-13 + Housing:HA205) Normal Duty hanger bearing
- UCHA205-13 Hanger shaped ball bearing unit consisting of a ball bearing insert

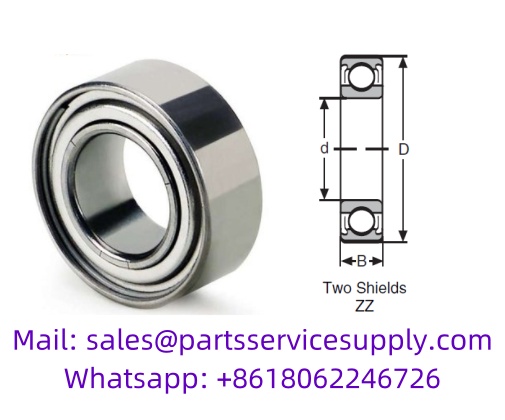

- MR-93-ZZ Miniature Ball Bearing (Alt P/N: MR93ZZS,3M09ZZ, R-930ZZY04, WBC3-9ZZA)
