3R10-125P1B Bore 2960.116 Mm, Heavy Duty Gearless Three Row Roller Slewing Rings
The 3R10-125P1B Three-row roller slewing bearings are widely used in ultra-heavy equipment with extremely high load-bearing capacity requirements, which need to withstand both massive wind loads and overturning moments, such as ultra-large tonnage cranes (crawler cranes, tower cranes), tunnel boring machines (cutterhead drive), large wind power (main bearings), port machinery (ship unloaders), mining machinery (crushers), and marine engineering equipment, among other fields.
The 3R10-125P1B bearing is a Heavy Duty Gearless Three Row Roller Slewing Rings with an inner diameter of 2960.116 mm , an outer diameter of 3402.076 mm, a width of 183.896 mm. 50Mn or 42CrMo rings, chrome-alloy steel rolling mlement. Double Sealed type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
3R10-125P1B bearings ( 2960.116 mm x 3402.076 mm x 183.896 mm) have the advantages of The strongest load-bearing capacity, independently bears the load, and has a robust and reliable structure, and are therefore widely used in the Heavy tower cranes, truck cranes, large excavators, wind turbines and tunnel boring equipment.
| Part Number | 3R10-125P1B |
| Bearing Type | Heavy Duty Gearless Three Row Roller Slewing Rings |
| Gears type | Gearless |
| Units | inch |
| Seal | Double Sealed |
| Seal Material | NBR (Nitrile Butadiene Rubber) |
| Rows NO. | Three |
| Outside - OD Φ [inch] | 133.94 |
| Inside - ID φ [inch] | 116.54 |
| IO [inch] | 127.32 |
| OI [inch] | 126.22 |
| Overall Hight - HT [inch] | 7.24 |
| OH [inch] | 5.59 |
| IH [inch] | 6.77 |
| K [inch] | 0.47 |
| Mounting Holes - OBC [inch] | 131.024 |
| OU [inch] | 1.38 |
| No. Holes - OBC | 64 |
| Mounting Holes - IBC [inch] | 119.606 |
| IU [inch] | 1.38 |
| No. Holes - IBC | 64 |
| Nominal Capacity Compressive Thrust [lbs] | 4330000 |
| Nominal Capacity Moment [ft-lbs] | 10428000 |
| Nominal Capacity Curve No. | 10-125 |
| Nominal Capacity Radial [lbs] | 763000 |
| Weight [lbs] | 5480 |

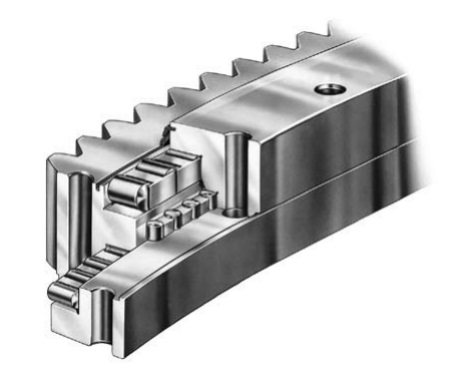

The 3R10-125P1B Three-row roller slewing bearings mainly consist of an upper ring, a lower ring, a middle ring, three rows of independent rollers (two rows of axial rollers at the top and bottom, and one row of radial rollers in the middle), spacers, and a sealing device. The three rows of raceways are separate and do not interfere with each other, resulting in a clear structural layout.
Three-row roller slewing bearings have the strongest load-bearing capacity. The three rows of rollers respectively bear axial force, radial force, and overturning moment, resulting in a reasonable load distribution. They exhibit excellent rigidity and impact resistance, have a long service life, and are suitable for heavy-duty rotation under extremely heavy loads and harsh working conditions.
