3816 2RS Solid Polyamide Snap Cage Angular Contact Ball Bearings, Sealed
The 3816 2RS They are widely used in equipment with high requirements for axial rigidity and space efficiency, including: automotive wheel hubs, industrial robots (wrist), machine tool spindles (lathes), electric fans (spindle supports), turbochargers, and medical devices (high-speed centrifuges).
The 3816 2RS bearing is a Angular contact ball bearings Double row sealed with an inner diameter of 80 mm , an outer diameter of 100 mm, a width of 15 mm. It typically uses PN grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 19196 N, its static radial rated load is approximately 24750 N. It uses CN standard radial clearance, 2RS = Contact seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Interchange code: 3816 2RS
3816 2RS bearings ( 80 mm x 100 mm x 15 mm) have the advantages of It can withstand radial and bidirectional axial loads simultaneously, has a compact structure, good rigidity, and is easy to install, and are therefore widely used in the Automotive wheel hub units, pumps, compressors, industrial gearboxes, and machine tool spindles.
| Part Number | 3816 2RS |
| Design Type | B = Bearing without filling slot |
| Bearing Type | Angular contact ball bearings Double row sealed |
| Series | 38..-B-2RS-TVH |
| Contact angle - α [°] | 25 |
| Rows NO. | double |
| Manufacturer Part Code | 3816-2RS |
| Radial internal clearances | CN |
| Cage | TVH = Solid polyamide snap cage, ball-guided |
| Equivalent | 3816 2RS |
| Lubricant | GA13 = Ball bearing and insert bearing grease |
| Seal type | 2RS = Contact seal on both sides |
| Heat stabilization | SN = up to 120° |
| m Weight [kg] | 0.23 |
| Reference From | FAG 3816 2RS |
| Dimensions | |
| d φ Inside [inch] | 3.150 |
| D Φ Outside [inch] | 3.937 |
| B Width [inch] | 0.591 |
| r(min.) [inch] | 0.024 |
| D1 [inch] | 3.680 |
| D2 [inch] | 3.753 |
| d1 [inch] | 3.413 |
| d2 [inch] | 3.367 |
| a [inch] | 1.882 |
| Performance | |
| Cr Radial Dynamic [N] | 19196 |
| C0r Radial static [N] | 24750 |
| Cur Radial Fatigue [N] | 1427 |
| nG Limiting speed (oil) [r/min] | 3079 |
| Mounting dimensions | |
| da(min.) [inch] | 3.276 |
| Da(max.) [inch] | 3.811 |
| ra(max.) [inch] | 0.024 |

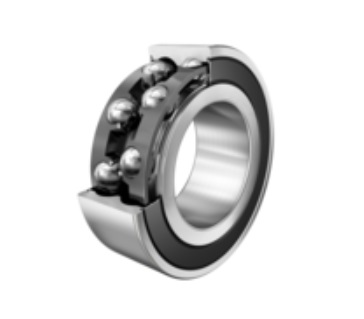

The 3816 2RS Double-row angular contact ball bearings primarily consist of an integral inner ring (or double-half inner ring), an integral outer ring, two rows of balls, and a cage. The contact angle is typically 25°, 30°, or 35°, with the two rows of balls arranged back-to-back, providing bidirectional axial load capacity.
A single bearing can withstand both radial and bidirectional axial loads, eliminating the need for paired installation. They offer high axial rigidity and excellent resistance to overturning moments, making them suitable for handling instantaneous overloads. The integral design simplifies installation, saves space, and is widely used in applications requiring compact designs.
