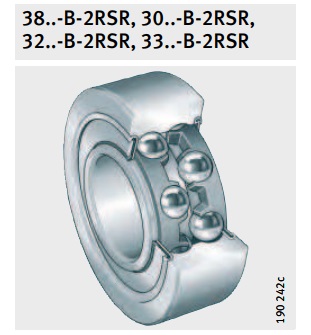

3800B2RSRTVH Solid Polyamide Snap Cage Angular Contact Ball Bearings, Sealed
The 3800B2RSRTVH Double-row deep groove ball bearings are widely used in equipment requiring a compact structure and bidirectional axial load capacity, such as automotive wheel hubs, industrial gearboxes, electric motors, agricultural machinery, crane pulleys, and conveyor equipment.
The 3800B2RSRTVH bearing is a Angular contact ball bearings Double row sealed with an inner diameter of 10 mm , an outer diameter of 19 mm, a width of 7 mm. It typically uses PN grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 2081 N, its static radial rated load is approximately 1375 N. It uses CN standard radial clearance, 2RSR = Lip seals on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
3800B2RSRTVH bearings ( 10 mm x 19 mm x 7 mm) have the advantages of High speed, low noise, low friction, and are therefore widely used in the Electric motors, industrial pumps, compressors, automobile wheels, and agricultural machinery.
| Part Number | 3800B2RSRTVH |
| Design Type | B = Modified internal construction, contact angle = 25°, without filling slot |
| Bearing Type | Angular contact ball bearings Double row sealed |
| Series | 38..-B |
| Contact angle - α [°] | 25 |
| Rows NO. | double |
| Manufacturer Part Code | 3800B.2RSR.TVH |
| Radial internal clearances | CN |
| Cage | TVH = Solid polyamide snap cage, ball-guided |
| Seal type | 2RSR = Lip seals on both sides |
| m Weight [kg] | 0.008 |
| Reference From | FAG 3800B2RSRTVH |
| Dimensions | |
| d φ Inside [inch] | 0.394 |
| D Φ Outside [inch] | 0.748 |
| B Width [inch] | 0.276 |
| r(min.) [inch] | 0.012 |
| d1 [inch] | 0.512 |
| a [inch] | 0.319 |
| Performance | |
| Cr Radial Dynamic [N] | 2081 |
| C0r Radial static [N] | 1375 |
| Cur Radial Fatigue [N] | 71 |
| nG Limiting speed (oil) [r/min] | 15957 |
| Mounting dimensions | |
| da(min.) [inch] | 0.472 |
| Da(max.) [inch] | 0.669 |
| ra(max.) [inch] | 0.012 |
The 3800B2RSRTVH Double-row deep groove ball bearings mainly consist of an integral inner ring, an integral outer ring, two rows of balls, and a cage. The raceways are deep grooves, with the balls making four-point contact with the raceways. The inner and outer rings are typically integrated, resulting in a compact structure.
A single set of double-row deep groove ball bearings can simultaneously withstand radial and bidirectional axial loads, eliminating the need for paired installation. They offer higher load-carrying capacity than single-row deep groove ball bearings and excellent rigidity. The integral structure simplifies installation, saves space, and is suitable for applications requiring high axial positioning.
