368-S/363D Double Row Tapered Roller Bearing Size 2.0312x3.5433x1.9688 Inch

🔍

368-S/363D

Bore Diameter:51.592 mm

Outside Diameter:90 mm

Width:50.008 mm

Weight:1.15 kg

Min. Order:1 Piece

The 368-S/363D bearing is a Tapered Roller Bearings with an inner diameter of 51.592 mm , an outer diameter of 90 mm, a width of 50.008 mm. It typically uses Standard grade precision tolerances and features a Steel cage, Chrome Steel (Gcr15) rings. It primarily bears Radial and Thrust, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Gearboxes, Hoisting Equipment, Rolling Mills and Machines in the Mining Industry, e.g. tunnelling machines.

Dimensions:

Inside Diameter:

51.592 mm

Outside Diameter:

90 mm

Thickness:

50.008 mm

Weight:

1.15 KG

Chamfer (R):

Cone Width (B):

22.225

Cup Width (C):

42.07

Chamfer (r):

0.8

Specifications:

HS Code:

8482500090

Structure:

Roller Bearing

Number of Rows:

Double

Demensions:

51.592x90x50.008

Brand:

Neutral Product

Precision Rating:

Standard

Load Direction:

Radial and Thrust

Bearing Material:

Chrome Steel (Gcr15)

Cage material:

Steel

Roller Material:

Chrome Steel (Gcr15)

Operating Temperature Range:

-40℃ to 120℃

System of Measurement:

Inch

Series:

365

Rolling Element:

Roller

Cone Number:

368-S

Cup Number:

363D

Transaction Information:

Transport Package:

Standard Export Package

Shipping Ways:

by Sea or Air

Country of Origin:

China

Stock:

100 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

368-S/363D Tapered Roller Bearing, TDO Type, Double Row, Inch Size.

Size (Inner Dia x Outer Dia x Bearing Width Across Cones): 2.0312x3.5433x1.9688 Inch (51.592x90x50.008 mm)

Cone Part No.: 368-S

Cup Part No.: 363D

Mini Operating Temperature:-40 °C

Max Operating Temperature:120 °C

368-S/363D Tapered Roller Bearing consists of two single inner rings (Cone) 368-S and a single piece (double) outer ring (Cup) 363D. Besides, it is usually supplied complete with an inner-ring spacer as a pre-set assembly.

368-S/363D Tapered Roller Bearing
Type:	TDO
Series:	365
Cone Part Number:	368-S
Cup Part Number:	363D
Bearing Weight (kg)	1.15
Main Dimensions:
	inch	mm
d-Bore:	2.0312	51.592
D-Cup Outer Diameter:	3.5433	90
B-Cone Width:	0.875	22.225
C-Double Cup Width:	1.6563	42.07
T-Bearing Width Across Cones	1.9688	50.008
Bearing Type:	Roller
Ring Material:	Chrome Steel
Roller Material:	Chrome Steel
Cage Material:	Stamped Steel
Precision:	Standard Precision
Load Direction:	Combined Radial and Thrust
Country of Origin:	China
HS Code:	8482500090

The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.

Applications: gearboxes, hoisting equipment, rolling mills and machines in the mining industry, e.g. tunnelling machines.

All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.

Share this product to:

Let more people see your product

How can you buy 368-S/363D Double Row Tapered Roller Bearing Size 2.0312x3.5433x1.9688 Inch on the Internet?
High quality 368-S/363D ( 1.15 kg Mass, ID: 51.592 mm OD: 90 mm WD: 50.008 mm , 365 Series , Double Rows , Standard Accuracy Class , Chrome Steel (Gcr15) Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 368-S/363D. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- 74550/74845 (ID:5 1/2xOD:8.4636xT:1.875 inch) Tapered (Single Row) Roller Bearing
- 74550/74845 Single Row Tapered Roller Bearing Cone Part No.: 74550 Cup Part No.: 74845 Size
- EE171000D/171436 Tapered Roller Bearing (Size: 10x14.372x3.65 Inch)
- EE171000D/171436 Tapered Roller Bearing, TDI Type, Double Row, Inch Size. Size (Inner Dia
- 37425/37625 (X6S-37425) Tapered Roller Bearing (Size: 4.25x6.25x1.9686 Inch)
- 37425/37625 (X6S-37425) Tapered Roller Bearing, Matched Bearing Assembly, Indirect Mount. Size (Inner Dia
- 45291/45220-B Imperial Tapered Roller Bearing Size 2.25x4.125x1.2188 Inch
- 45291/45220-B Tapered Roller Bearing, Single Row, With Flange Cone Part No.: 45291 Cup Part
- 838/832-B Single Row Tapered Roller Bearing Size 3 3/16x6.625x2.219 Inch
- 838/832-B Tapered Roller Bearing, Single Row, With Flange. Cone Part No.: 838 Cup Part
- 22318CAK/W33 (d:90xD:190xB:64mm) Spherical Roller Bearing for Mining Equipment
- 22318CAK/W33 Spherical Roller Bearing with High Load Capacity Size: 90x190x64mm Inner Diameter (d): 90mm Outer
- NUP428 Cylindrical Roller Bearing 140x360x82mm
- NUP428 Cylindrical Roller Bearing Bearing Model No. :NUP428 Type: Cylindrical Roller Bearing Size:140x360x82mm

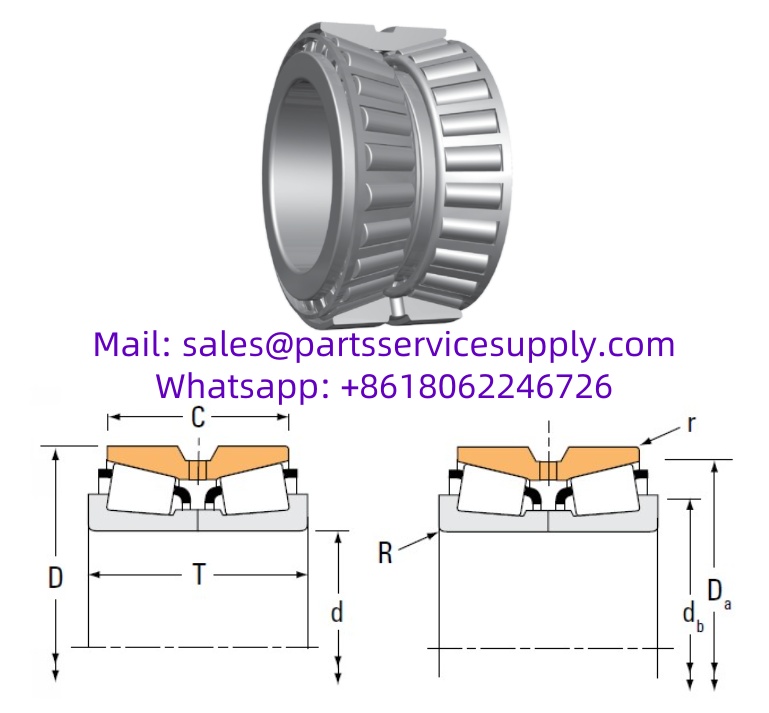

- NA455/452D Double Row Tapered Roller Bearing (Size: 2x4.25x2.5626 Inch)
