361201 R Bore 12 Mm, Single Row Cam Rollers
The 361201 R Cam-follower studded roller bearings are widely used in cam-driven and linear guidance systems in automated equipment, such as: cam mechanisms (automatic machine tool indexing plates), conveying equipment (track rollers), packaging machinery (cam-driven sealing), printing machinery, robot end effectors, and material handling equipment.
The 361201 R bearing is a Single row cam rollers with an inner diameter of 12 mm , an outer diameter of 35 mm, a width of 10 mm. GCr15SiMn rings, GCr15SiMn rolling mlement. It uses C3 standard radial clearance, NBR contact seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
361201 R bearings ( 12 mm x 35 mm x 10 mm) have the advantages of Easy to install, can withstand high radial loads and impacts, wear-resistant and runs smoothly, and are therefore widely used in the Conveying systems, automated equipment, cam mechanisms, machine tools and material handling machinery.
| Part Number | 361201 R |
| Bearing Type | Single row cam rollers |
| Design | 3612.. R = Single row cam roller with an NBR contact seal on both sides |
| Relubrication feature | No |
| Heat stabilized | 120 °C (250 °F) |
| Coating | No |
| Lubricant | Grease |
| Axial guidance of outer ring | Yes |
| Sealing | NBR contact seal on both sides |
| Sealing type | Contact |
| Cage type | Ribbon-type, ball centred |
| Cage Material | Stamped steel |
| Outer ring | Crowned |
| Radial internal clearance | C3 |
| Interchangeable | SKF 361201 R |
| Radial Dynamic - Cr [lbf] | 1402 |
| Radial Static - C0r [lbf] | 584 |
| Fatigue load limit - Pu [lbf] | 24 |
| Max. dynamic radial load - Fr max. [lbf] | 753 |
| Max. static radial loads - F0r max. [lbf] | 1067 |
| Speed ratings - nG [min–1] | 11000 |

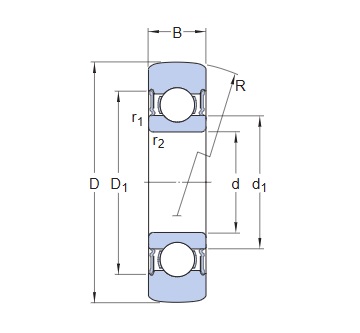

| Outside - D Φ [inch] | 1.378 |
| Shoulder/recess diameter inner ring - d1 [inch] | 0.724 |
| Width - B [inch] | 0.394 |
| Inside - d φ [inch] | 0.472 |
| Chamfer - r1,2 min. [inch] | 0.024 |
| Weight [lb] | 0.110 |
| Recess diameter outer ring shoulder - D1 [inch] | 1.079 |
| Calculation factor - f0 | 12.2 |
| Profile running surface (crown) outer ring - R [inch] | 15.748 |

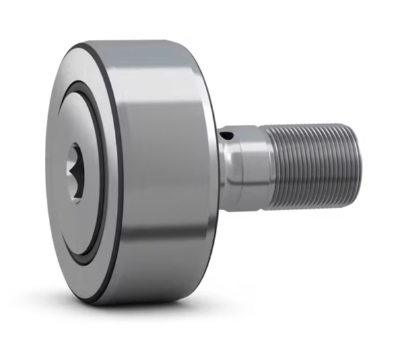

The 361201 R Cam follower stud roller bearings mainly consist of a stud (a threaded solid shaft), an outer ring (serving as the rolling track), needle rollers or rollers, a cage, and a sealing device. The stud head has a wrench groove or an internal hexagonal hole, and the outer surface of the outer ring can be designed as spherical or cylindrical to accommodate different tracks.
Cam follower stud roller bearings are easy to install, directly fixed to the equipment via the stud threads without the need for an additional bearing housing. They have high load-bearing capacity, with the needle roller structure providing high radial load capacity. The outer ring can be eccentrically adjusted to easily compensate for installation errors. They possess shock resistance and contamination resistance, making them suitable for harsh working conditions.
