339-333 Bore 35.001 Mm, 335 Series, Tapered Roller Bearings Single Row - TS Type Imperial

🔍

339-333

Bore Diameter:35.001 mm

Outside Diameter:80 mm

Width:21.001 mm

Min. Order:1 Piece

The 339-333 Imperial single-row tapered roller bearings are suitable for applications requiring combined loads and easy installation and maintenance. Classic applications include automotive wheel hubs and axles, industrial gearboxes, agricultural machinery, conveyor rollers, mining equipment, and machine tool spindles.

The 339-333 bearing is a Tapered Roller Bearings Single Row - TS type Imperial with an inner diameter of 35.001 mm , an outer diameter of 80 mm, a width of 21.001 mm. GCr15 / SAE 52100 / 20CrNiMoA rings, GCr15 / SAE 52100 rolling mlement. Its dynamic axial rated load is approximately 2565 N, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

35.001 mm

Outside Diameter:

80 mm

Thickness:

21.001 mm

Dynamic load Capacity, axial:

2565 N

Specifications:

Structure:

TS = Single-row (pressed steel and pin-type)

Number of Rows:

Single row

Bearing Material:

GCr15 / SAE 52100 / 20CrNiMoA

Cage Type:

Sheet metal

Rolling Mlement Material:

GCr15 / SAE 52100

Operating Temperature:

-30 to 110 °C

System of Measurement:

Inch

Series:

335

Rolling Element:

tapered rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

339-333 bearings ( 35.001 mm x 80 mm x 21.001 mm) have the advantages of Simultaneously withstands combined loads (radial and axial loads) and is detachable for installation, and are therefore widely used in the Automotive wheel hubs, axles, transmissions, industrial gearboxes, and machine tool spindles.

Part Number	339-333
Type	TS = Single-row (pressed steel and pin-type)
Manufacturer Part Code	339-333
Reference From	TIMKEN 339-333
Inner ring (cone)	339
Outer ring (cup)	333
Series	335
Bearing Type	Tapered Roller Bearings Single Row - TS type Imperial
Units	Inch
Rows NO.	Single row
Cage Material	Sheet metal
Temperature - T(min) [°C]	-30
Temperature - T(max) [°C]	110
C₁ Dynamic Radial [lbf]	21224
C_a90 Dynamic Axial [lbf]	2565
C₉₀ Dynamic Radial [lbf]	5483
C₀ Static Radial [lbf]	18703
Dimensions
d φ Inside [inch]	1.378
D Φ Outside [inch]	3.1496
T thickness [inch]	0.8268
B Cone Width [inch]	0.882
C Cup Width [inch]	0.8268
a Effective center [inch]	-0.25
r Fillet Radius (Housing) [inch]	0.08
R Fillet Radius (Shaft) [inch]	0.03
A_b [inch]	0.07
d_a Dia.(Shaft) [inch]	1.63
d_b Dia.(Shaft) [inch]	1.67
D_a Dia.(Housing) [inch]	3.03
D_b Dia.(Housing) [inch]	2.83
Coefficient
e	0.27
Y	2.2
K	2.14
G₁ Geometry (Roller-Raceway)	26.5
G₂ Geometry (Rib-Roller End)	13
C_g Geometry	0.0676

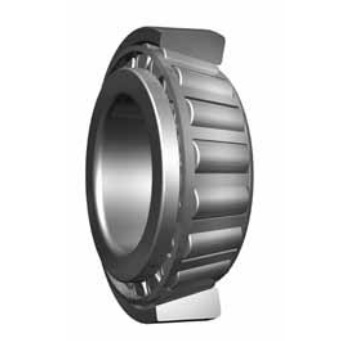

The 339-333 Imperial single-row tapered roller bearings mainly consist of an outer ring, inner ring, tapered rollers, and a cage. The outer and inner ring assemblies are separable for easy installation and adjustment. The rollers make line contact with the raceways. The cage is typically made of stamped steel or brass.

Imperial single-row tapered roller bearings can simultaneously withstand radial and unidirectional axial loads, exhibiting high load-bearing capacity and rigidity. Their separable structure facilitates clearance adjustment and preload control, resulting in a high limiting speed. They conform to imperial standard dimensions and offer excellent interchangeability.
