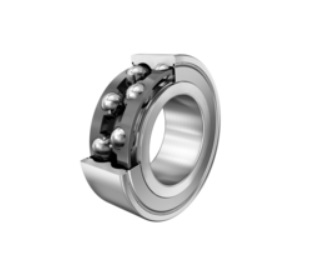

3207-BD-2Z-TVH-C3 Solid Polyamide Snap Cage Angular Contact Ball Bearings, Sealed

🔍

3207-BD-2Z-TVH-C3

Bore Diameter:35 mm

Outside Diameter:72 mm

Width:27 mm

Weight:0.438 kg

Min. Order:1 Piece

The 3207-BD-2Z-TVH-C3 They are widely used in equipment with high requirements for axial rigidity and space efficiency, including: automotive wheel hubs, industrial robots (wrist), machine tool spindles (lathes), electric fans (spindle supports), turbochargers, and medical devices (high-speed centrifuges).

The 3207-BD-2Z-TVH-C3 bearing is a Angular contact ball bearings Double row sealed with an inner diameter of 35 mm , an outer diameter of 72 mm, a width of 27 mm. It typically uses P6 grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 40971 N, its static radial rated load is approximately 29989 N. It uses C3 standard radial clearance, 2Z = Gap seals on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 3207-B-2Z-TVH-C3,3207-BD-2Z-TVH-C3

Dimensions:

Inside Diameter:

35 mm

Outside Diameter:

72 mm

Thickness:

27 mm

Weight:

0.438 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

40971 N

Static load Capacity, Radial (Cor):

29989 N

Fatigue Load Limit, Radial:

2080 N

Reference speed (Grease rpm):

9893

Limiting speed (Oil rpm):

7594

Specifications:

Structure:

Double row angular contact ball bearings

Number of Rows:

double

Radial Clearance Trade No.:

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVH = Solid polyamide snap cage, ball-guided

Seals Type:

2Z = Gap seals on both sides

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-20 to 120 °C

Series:

32..-BD-XL-2Z-TVH

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

3207-BD-2Z-TVH-C3 bearings ( 35 mm x 72 mm x 27 mm) have the advantages of It can withstand radial and bidirectional axial loads simultaneously, has a compact structure, good rigidity, and is easy to install, and are therefore widely used in the Automotive wheel hub units, pumps, compressors, industrial gearboxes, and machine tool spindles.

Part Number	3207-BD-2Z-TVH-C3
Design Type	B = Bearing without filling slot
Bearing Type	Angular contact ball bearings Double row sealed
Series	32..-BD-XL-2Z-TVH
X-Life	XL long life design
Contact angle - α [°]	30
Rows NO.	double
Manufacturer Part Code	3207-BD-2Z-TVH-C3
Radial internal clearances	C3
Cage	TVH = Solid polyamide snap cage, ball-guided
Equivalent	3207-B-2Z-TVH-C3,3207-BD-2Z-TVH-C3
Lubricant	GA13 = Ball bearing and insert bearing grease
Seal type	2Z = Gap seals on both sides
Heat stabilization	SN = up to 120°
m Weight [kg]	0.438
Reference From	FAG 3207-BD-2Z-TVH-C3
Dimensions
d φ Inside [inch]	1.378
D Φ Outside [inch]	2.835
B Width [inch]	1.063
r(min.) [inch]	0.043
D₁ [inch]	2.457
D₂ [inch]	2.574
d₁ [inch]	1.933
d₂ [inch]	1.848
a [inch]	1.673
Performance
C_r Radial Dynamic [N]	40971
C_0r Radial static [N]	29989
C_ur Radial Fatigue [N]	2080
n_G Limiting speed (oil) [r/min]	7594
n_B Reference speed (grease) [r/min]	9893
Mounting dimensions
d_a(min.) [inch]	1.654
D_a(max.) [inch]	2.559
r_a(max.) [inch]	0.039

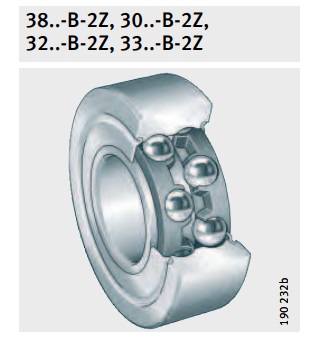

The 3207-BD-2Z-TVH-C3 Double-row angular contact ball bearings primarily consist of an integral inner ring (or double-half inner ring), an integral outer ring, two rows of balls, and a cage. The contact angle is typically 25°, 30°, or 35°, with the two rows of balls arranged back-to-back, providing bidirectional axial load capacity.

A single bearing can withstand both radial and bidirectional axial loads, eliminating the need for paired installation. They offer high axial rigidity and excellent resistance to overturning moments, making them suitable for handling instantaneous overloads. The integral design simplifies installation, saves space, and is widely used in applications requiring compact designs.
