30BER20HV1V Angular Contact Ball Bearing (Size: 30x55x16mm)

🔍

30BER20HV1V

Bore Diameter:30 mm

Outside Diameter:55 mm

Width:16 mm

Weight:0.142 kg

Min. Order:1 Piece

The 30BER20HV1V bearing is a Angular Contact Ball Bearings with an inner diameter of 30 mm , an outer diameter of 55 mm, a width of 16 mm. Bearing Steel balls, Its dynamic radial rated load is approximately 10.50 (kN), its static radial rated load is approximately 5.30 (kN). Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Machine tool spindles, High-speed micro motors, Robotics and automation components, Precision instrumentation

Dimensions:

Inside Diameter:

30 mm

Outside Diameter:

55 mm

Thickness:

16 mm

Weight:

0.142 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

10.50 (kN)

Static load Capacity, Radial (Cor):

5.30 (kN)

Reference speed (Grease rpm):

37700

Specifications:

HS Code:

8482103090

Structure:

Ball Bearing

Number of Rows:

Single

Demensions:

30x55x16

Brand:

Neutral Product

Bearing Material:

Bearing Steel

Seals Type:

Open

Ball Material:

Bearing Steel

Contact Angle:

Bore Type:

Cylindrical

System of Measurement:

Metric

Rolling Element:

Ball

Closure Type:

Open

Transaction Information:

Transport Package:

Standard Export Package

Shipping Ways:

by Sea or Air

Country of Origin:

China

Stock:

1000 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

30BER20HV1V Angular Contact Ball Bearing, High Precision, High Speed and High Load Carrying Capacity.

Size: 30x55x16mm

Inner Diameter (d): 30 mm

Outer Diameter (D): 55 mm

Width (B): 16 mm

Contact Angle: 25° degree

HS Code: 8482103090

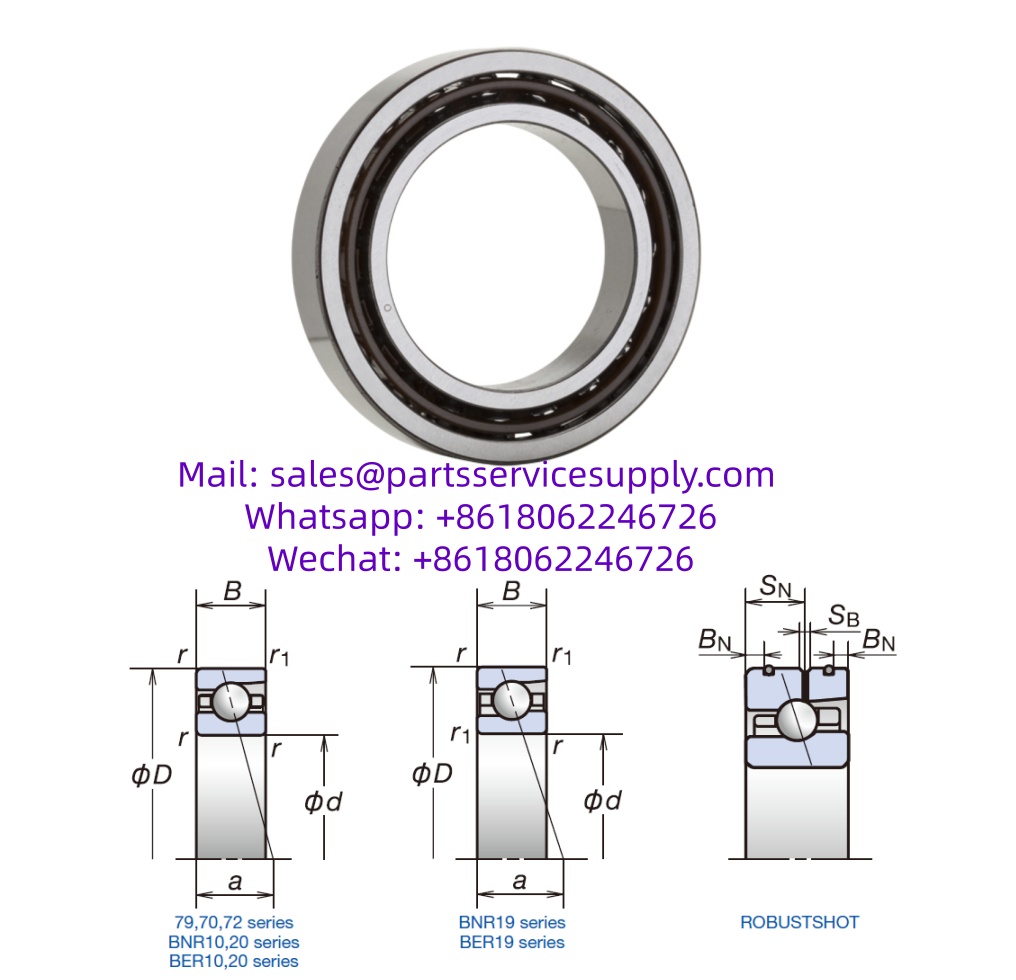

Angular Contact Ball Bearing

Part No.

Boundary Dimensions

Basic Loading Ratings (kN)

Contact Angle (°)

Limiting Speeds (min)

Mass

r (min.)

r1 (min.)

Cr (Dynamic)

Cor (Static)

Grease

Oil

30BER20HV1V

0.6

10.50

5.30

37700

0.142

Contact Angle:

Standard Series: C: 15°, A5: 25°, A: 30°

Robust Series: BNR, BNRD: 18°, BER, BERD: 25°, BSR: 15°

Material:

Standard Series:

No Code: Steel Ball SN24: Ceramic Ball

Robust Series:

S: Bearing Steel Inner, Outer Ring & Ball

E: Bearing Steel Inner, Outer Ring & Ultra Long Life Steel Rolling Elements

H: Bearing Steel Inner &Outer Ring, Ceramic Balls

J: Ultra Long Life Steel Inner &Outer Ring, Ceramic Balls

X: High Resistant Steel Inner &Outer Ring, Ceramic Balls

XE: High Resistant Steel Inner &Outer Ring, Ceramic Balls

Cage:

TYN: Polyamide Resin

TR, T, TX, TA: Phenolic Resin

TSR: PPS Resin

MY: Brass

Common Applications:

Machine tool spindles

High-speed micro motors

Robotics and automation components

Precision instrumentation

Angular contact ball bearings feature offset inner and outer raceways designed to handle combined loads (simultaneous radial and axial forces). Because a radial load creates an axial force, they must be assembled with a preload and are typically mounted in pairs, trios, or quartets to ensure structural rigidity.

All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.
