29322-E1-N1 Bore 110 Mm, Axial Spherical Roller Bearings No Flanging Ring With Stamping Steel Cage

🔍

29322-E1-N1

Bore Diameter:110 mm

Outside Diameter:190 mm

Width:48 mm

Weight:5.2 kg

Min. Order:1 Piece

The 29322-E1-N1 Spherical Roller Thrust Bearings are suitable for heavy-duty applications involving alignment errors and impacts. Classic applications include large gate hoists in hydraulic engineering, ship stern tubes, mining crushers, continuous casting machine slewing tables, large crane slewing supports, and oil drilling rig rotary tables.

The 29322-E1-N1 bearing is a Axial spherical roller bearings no flanging ring with an inner diameter of 110 mm , an outer diameter of 190 mm, a width of 48 mm. GCr15, GCr15SiMn rings, GCr15, GCr15SiMn rolling mlement. Its dynamic axial rated load is approximately 615784 N, its static axial rated load is approximately 1757158 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

110 mm

Outside Diameter:

190 mm

Thickness:

48 mm

Weight:

5.2 KG

Dynamic load Capacity, axial (Ca):

615784 N

Static load Capacity, axial (C0a):

1757158 N

Fatigue Load Limit, Axial (Cua):

211961 N

Reference speed (Grease rpm):

1803

Limiting speed (Oil rpm):

3552

Specifications:

Old Designations:

29322E1N1

Structure:

Thrust Spherical Roller Bearings

Number of Rows:

One

Bearing Material:

GCr15, GCr15SiMn

Cage Type:

JP = Stamping steel cage

Rolling Mlement Material:

GCr15, GCr15SiMn

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 200 °C

System of Measurement:

Metric

Series:

293 series (293..-E1-N1)

Rolling Element:

spherical roller

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

29322-E1-N1 bearings ( 110 mm x 190 mm x 48 mm) have the advantages of withstand extremely high axial loads and has a self-aligning function to compensate for installation errors or shaft deformation, and are therefore widely used in the Ship propulsion systems, oil drilling rigs, large cranes, hydroelectric generators, and heavy-duty gearboxes.

Part Number	29322-E1-N1
Bearing Type	Axial spherical roller bearings no flanging ring
Design Type	E1 = Increased capacity design
Cage	JP = Stamping steel cage
Series	293 series (293..-E1-N1)
Thread holes	No
Locating	N1 = Locating feature, bearing housing washer
Permissible skewing	1.5° to 2.5°
Bearing Mass - m [lb]	11.4639
Performance
Axial Dynamic Capacity - C_a [lbf]	138428
Axial Static Capacity - C_0a [lbf]	395009
Axial Fatigue Capacity - C_ua [lbf]	47648
Reference speed - n_B [min^–1]	1803
Limiting speed - n_G [min^–1]	3552
Dimension
Inside - d φ [inch]	4.3307
Outside - D Φ [inch]	7.4803
Thickness - T [inch]	1.8898
T₁ [inch]	0.9764
T₃ [inch]	1.1929
T₅ [inch]	1.6535
A [inch]	2.5197
D₁ [inch]	5.5118
d₁ [inch]	6.9134
r(min.) [inch]	0.0787
Mounting dimensions
d_a(min.) [inch]	5.9055
D_a(max.) [inch]	6.4961
D_b(min.) [inch]	7.5984
d_b(max.) [inch]	4.7244
r_a(max.) [inch]	0.0787

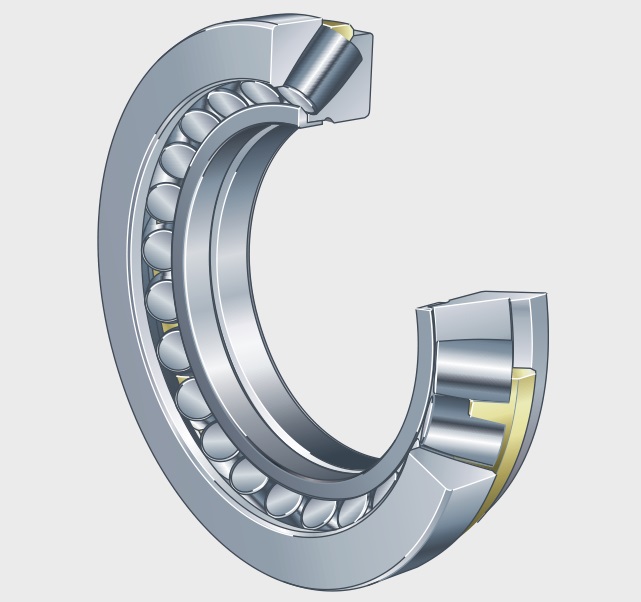

The 29322-E1-N1 Spherical Roller Thrust Bearings primarily consist of a shaft ring, a housing ring, asymmetrical drum-shaped rollers, and a cage assembly. The housing ring features a spherical raceway design, allowing the rollers to automatically adjust for alignment errors between the shaft and the housing ring.

The advantages of Spherical Roller Thrust Bearings lie in their superior self-aligning capability, effectively compensating for misalignment caused by installation skew or shaft deformation. They also possess extremely high axial load capacity, can withstand certain radial loads, and exhibit excellent impact resistance.
