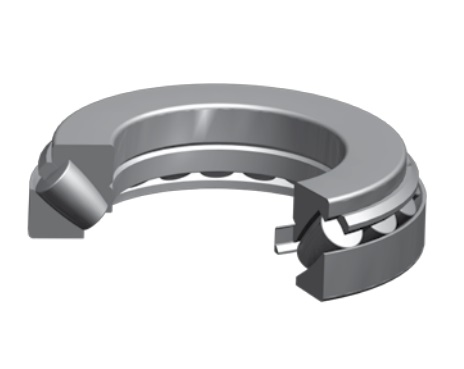

293/560EM Thrust Spherical Roller Bearing, Brass Cage
The 293/560EM Spherical Roller Thrust Bearings are suitable for heavy-duty applications involving alignment errors and impacts. Classic applications include large gate hoists in hydraulic engineering, ship stern tubes, mining crushers, continuous casting machine slewing tables, large crane slewing supports, and oil drilling rig rotary tables.
The 293/560EM bearing is a Thrust spherical roller bearing with an inner diameter of 560 mm , an outer diameter of 850 mm, a width of 175 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic axial rated load is approximately 6175807 N, its static axial rated load is approximately 26594088 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
293/560EM bearings ( 560 mm x 850 mm x 175 mm) have the advantages of withstand extremely high axial loads and has a self-aligning function to compensate for installation errors or shaft deformation, and are therefore widely used in the Ship propulsion systems, oil drilling rigs, large cranes, hydroelectric generators, and heavy-duty gearboxes.
| Part Number | 293/560EM |
| Design type | TSR-EM: Spherical inner and outer races; large end roller-riding brass cage |
| Bearing Type | Thrust spherical roller bearing |
| Interchangeable | TIMKEN 293/560EM |
| Manufacturer Part Code | 293/560 EM |
| Series | 293 series (293..EM) |
| Cage | EM = brass cage |
| Units | Metric |
| Tolerance class | PN (ABEC-1) |
| Dimension Series | 93 = Medium |
| Heat stabilized | 200 °C (390 °F) |
| C0a Axial Static [lbf] | 5978350 |
| Ca Axial Dynamic [lbf] | 1388321 |
| Thermal Speed Rating [lbf] | 79 |
| nG Speed ratings (oil) [rpm] | 668 |
| d φ Inside [inch] | 22.0472 |
| D Φ Outside [inch] | 33.4645 |
| T Width [inch] | 6.8898 |
| T1 Cage Position [inch] | 4.6890 |
| T2 Cone Width [inch] | 2.4803 |
| T3 Cup Width [inch] | 3.3465 |
| S [inch] | 12.2047 |
| r Fillet Radius [inch] | 0.2362 |
| d1 [inch] | 31.1023 |
| D1 [inch] | 27.1653 |
| E (Max) Shoulder Diameter Housing [inch] | 28.0314 |
| H (Min) Shoulder Diameter Shaft [inch] | 29.1338 |
| Weight [lb] | 682.9851 |
| Kc Centrifugal force constant | 4055 |
The 293/560EM Spherical Roller Thrust Bearings primarily consist of a shaft ring, a housing ring, asymmetrical drum-shaped rollers, and a cage assembly. The housing ring features a spherical raceway design, allowing the rollers to automatically adjust for alignment errors between the shaft and the housing ring.
The advantages of Spherical Roller Thrust Bearings lie in their superior self-aligning capability, effectively compensating for misalignment caused by installation skew or shaft deformation. They also possess extremely high axial load capacity, can withstand certain radial loads, and exhibit excellent impact resistance.
