26885/26821 Bore 41.275 Mm, 26800 Series, Tapered Roller Bearings - TS Type Imperial

🔍

26885/26821

Bore Diameter:41.275 mm

Outside Diameter:80.167 mm

Width:29.373 mm

Min. Order:1 Piece

The 26885/26821 Imperial single-row tapered roller bearings are suitable for applications requiring combined loads and easy installation and maintenance. Classic applications include automotive wheel hubs and axles, industrial gearboxes, agricultural machinery, conveyor rollers, mining equipment, and machine tool spindles.

The 26885/26821 bearing is a Tapered Roller Bearings Single Row - TS type Imperial with an inner diameter of 41.275 mm , an outer diameter of 80.167 mm, a width of 29.373 mm. GCr15 / SAE 52100 / 20CrNiMoA rings, GCr15 / SAE 52100 rolling mlement. Its dynamic axial rated load is approximately 2904 N, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 26885 - 26821

Dimensions:

Inside Diameter:

41.275 mm

Outside Diameter:

80.167 mm

Thickness:

29.373 mm

Dynamic load Capacity, axial:

2904 N

Specifications:

Structure:

TS = Single-row (pressed steel and pin-type)

Number of Rows:

Single row

Bearing Material:

GCr15 / SAE 52100 / 20CrNiMoA

Cage Type:

Sheet metal

Rolling Mlement Material:

GCr15 / SAE 52100

Operating Temperature:

-30 to 110 °C

System of Measurement:

Inch

Series:

26800

Rolling Element:

tapered rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

26885/26821 bearings ( 41.275 mm x 80.167 mm x 29.373 mm) have the advantages of Simultaneously withstands combined loads (radial and axial loads) and is detachable for installation, and are therefore widely used in the Automotive wheel hubs, axles, transmissions, industrial gearboxes, and machine tool spindles.

Part Number	26885/26821
Type	TS = Single-row (pressed steel and pin-type)
Manufacturer Part Code	26885-26821
Reference From	TIMKEN 26885/26821
Inner ring (cone)	26885
Outer ring (cup)	26821
Series	26800
Bearing Type	Tapered Roller Bearings Single Row - TS type Imperial
Units	Inch
Rows NO.	Single row
Cage Material	Sheet metal
Temperature - T(min) [°C]	-30
Temperature - T(max) [°C]	110
C₁ Dynamic Radial [lbf]	20514
C_a90 Dynamic Axial [lbf]	2904
C₉₀ Dynamic Radial [lbf]	5348
C₀ Static Radial [lbf]	24815
Dimensions
d φ Inside [inch]	1.625
D Φ Outside [inch]	3.1562
T thickness [inch]	1.1564
B Cone Width [inch]	1
C Cup Width [inch]	0.9688
a Effective center [inch]	-0.29
r Fillet Radius (Housing) [inch]	0.13
R Fillet Radius (Shaft) [inch]	0.03
A_b [inch]	0.07
A_a [inch]	0.04
d_a Dia.(Shaft) [inch]	1.85
d_b Dia.(Shaft) [inch]	1.89
D_a Dia.(Housing) [inch]	2.94
D_b Dia.(Housing) [inch]	2.68
Coefficient
e	0.32
Y	1.88
K	1.83
C_g Geometry	0.077

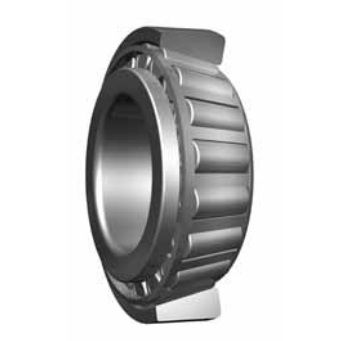

The 26885/26821 Imperial single-row tapered roller bearings mainly consist of an outer ring, inner ring, tapered rollers, and a cage. The outer and inner ring assemblies are separable for easy installation and adjustment. The rollers make line contact with the raceways. The cage is typically made of stamped steel or brass.

Imperial single-row tapered roller bearings can simultaneously withstand radial and unidirectional axial loads, exhibiting high load-bearing capacity and rigidity. Their separable structure facilitates clearance adjustment and preload control, resulting in a high limiting speed. They conform to imperial standard dimensions and offer excellent interchangeability.
