266DtVL726 Double-row (two Direction) Angular Contact Thrust Ball Bearing

🔍

266DtVL726

Bore Diameter:676.275 mm

Outside Diameter:914.4 mm

Width:193.675 mm

Weight:296.6 kg

Min. Order:1 Piece

The 266DtVL726 Thrust angular contact ball bearings are mainly suitable for applications requiring high speed, low friction, and simultaneous axial and certain radial loads, such as fluid control valves, machine tool worktables and spindles, and rotary tables in the oil and gas drilling industry.

The 266DtVL726 bearing is a Double-row (two direction) angular contact thrust ball bearing with an inner diameter of 676.275 mm , an outer diameter of 914.4 mm, a width of 193.675 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

676.275 mm

Outside Diameter:

914.4 mm

Thickness:

193.675 mm

Weight:

296.6 KG

Specifications:

Structure:

Double-direction angular contact thrust ball bearings

Number of Rows:

Two

Precision Rating:

PN (ABEC-1)

Bearing Material:

bearing steel

Rolling Mlement Material:

bearing steel

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 110 °C

System of Measurement:

Metric

Series:

DTVL

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

266DtVL726 bearings ( 676.275 mm x 914.4 mm x 193.675 mm) have the advantages of Composite load, high speed, high rigidity, and are therefore widely used in the rotary tables of oil and gas drilling rigs.

Part Number	266DtVL726
Design type	DTVL: Double-row angular contact construction, upper and lower complement of balls
Bearing Type	Double-row (two direction) angular contact thrust ball bearing
Interchangeable	TIMKEN 266DtVL726
Manufacturer Part Code	266 DTVL 726
Series	DTVL
Units	Metric
Tolerance class	PN (ABEC-1)
Coa Upper Static [lbf]	1338722
Co Upper Dynamic [lbf]	221915
Coa Lower Static [lbf]	882601
d φ Inside [inch]	26.6249
D Φ Outside [inch]	35.9999
T Width [inch]	7.6250
T₁ Cage Position [inch]	5.6252
r Fillet Radius [inch]	0.2520
d₁ [inch]	26.4999
D₁ [inch]	34.4999
D₂ [inch]	30.9999
E₁ [inch]	29.2519
E (Max) Shoulder Diameter Housing [inch]	30.9999
Weight [lb]	653.8844

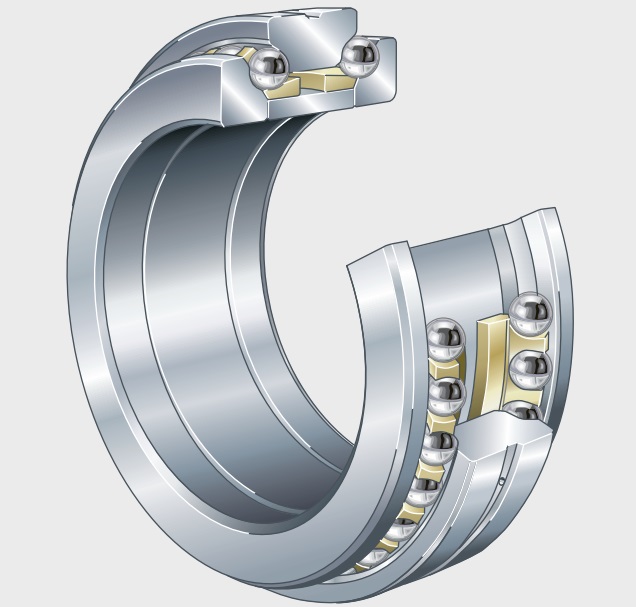

The 266DtVL726 Thrust angular contact ball bearings are mainly composed of precision-ground steel balls, hardened and ground steel raceways, and a brass (or bronze) cage. Their core characteristic is their ability to simultaneously withstand axial thrust loads and a certain amount of radial load, and they also feature low friction, quiet operation, and suitability for high-speed operation.
