24160AK30.526655 Bore 300 Mm, Spherical Roller Bearings For Cold Pilger Rolling Mills For Work Rolls, Reinforced Cage
The 24160AK30.526655 Rolling mill bearings are mainly suitable for applications such as floating ends that bear medium to heavy radial loads and need to accommodate shaft thermal expansion, or roll necks that need to bear combined radial and axial loads, as well as gear drives.
The 24160AK30.526655 bearing is a Spherical Roller Bearings for Cold Pilger Rolling Mills for work rolls with an inner diameter of 300 mm , an outer diameter of 500 mm, a width of 200 mm. Bearing steel rings, Bearing steel rolling mlement. It primarily bears Radial and axial loads, Its dynamic radial rated load is approximately 3000000 N, its static radial rated load is approximately 5700000 N. It uses C2 standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
24160AK30.526655 bearings ( 300 mm x 500 mm x 200 mm) have the advantages of Extremely high load-bearing capacity and rigidity, and are therefore widely used in the Hot rolling, cold rolling, and wire rod mills.
| Part Number | 24160AK30.526655 |
| Interchangeable | FAG 24160AK30.526655 |
| Cage | reinforced cage |
| Radial internal clearance | C2 |
| Seal | Open |
| Bearing Type | Spherical Roller Bearings for Cold Pilger Rolling Mills for work rolls |
| Bearing Weight [lb] | 350.531 |

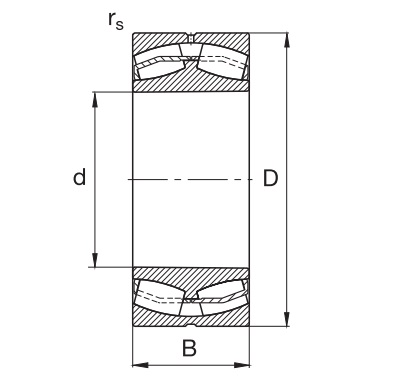

| d φ Inside [inch] | 11.811 |
| D Φ Outside [inch] | 19.685 |
| B Width [inch] | 7.874 |
| rs min Chamfer | 5 mm |
| Cr Radial Dynamic [lbf] | 674400 |
| C0r Radial Static [lbf] | 1281360 |
| Factor | |
| e | 0.4 |
| Y1 | 1.67 |
| Y2 | 2.49 |
| Y0 | 1.63 |
