24148AK30.527491 Bore 240 Mm, Spherical Roller Bearings For Cold Pilger Rolling Mills For Work Rolls, Reinforced Cage
The 24148AK30.527491 Rolling mill bearings are mainly suitable for applications such as floating ends that bear medium to heavy radial loads and need to accommodate shaft thermal expansion, or roll necks that need to bear combined radial and axial loads, as well as gear drives.

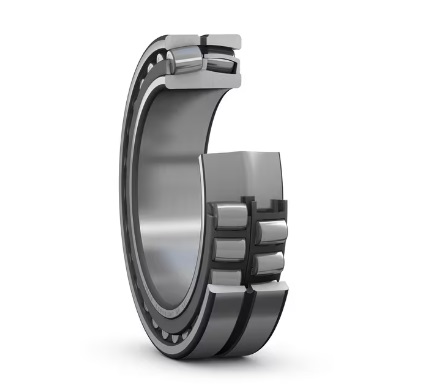

The 24148AK30.527491 bearing is a Spherical Roller Bearings for Cold Pilger Rolling Mills for work rolls with an inner diameter of 240 mm , an outer diameter of 400 mm, a width of 160 mm. Bearing steel rings, Bearing steel rolling mlement. It primarily bears Radial and axial loads, Its dynamic radial rated load is approximately 1960000 N, its static radial rated load is approximately 3450000 N. It uses C2 standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
24148AK30.527491 bearings ( 240 mm x 400 mm x 160 mm) have the advantages of Extremely high load-bearing capacity and rigidity, and are therefore widely used in the Hot rolling, cold rolling, and wire rod mills.
| Part Number | 24148AK30.527491 |
| Interchangeable | FAG 24148AK30.527491 |
| Cage | reinforced cage |
| Radial internal clearance | C2 |
| Seal | Open |
| Bearing Type | Spherical Roller Bearings for Cold Pilger Rolling Mills for work rolls |
| Bearing Weight [lb] | 171.077 |
| d φ Inside [inch] | 9.449 |
| D Φ Outside [inch] | 15.748 |
| B Width [inch] | 6.299 |
| rs min Chamfer | 4 mm |
| Cr Radial Dynamic [lbf] | 440608 |
| C0r Radial Static [lbf] | 775560 |
| Factor | |
| e | 0.41 |
| Y1 | 1.66 |
| Y2 | 2.47 |
| Y0 | 1.62 |
