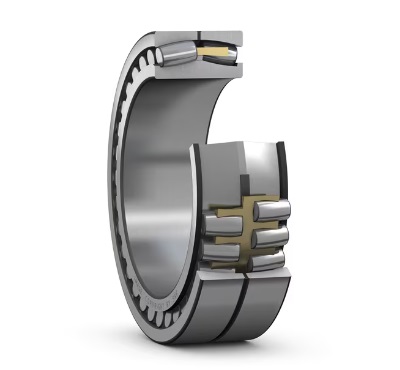

241/560 ECAK30/W33 Spherical Roller Bearings, Brass Cage
The 241/560 ECAK30/W33 Double-row spherical roller bearings are suitable for heavy-load, impact, and eccentric conditions. Classic applications include vibrating screen exciters, crushers, fans, paper machine press rolls, mining conveyor equipment, and marine propulsion shafts.
The 241/560 ECAK30/W33 bearing is a Spherical roller bearings, double row with an inner diameter of 560 mm , an outer diameter of 920 mm, a width of 355 mm. High-carbon chromium steel rings, High-carbon chromium steel rolling mlement. Its dynamic radial rated load is approximately 12366909 N, its static radial rated load is approximately 21579884 N. It uses CN standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
241/560 ECAK30/W33 bearings ( 560 mm x 920 mm x 355 mm) have the advantages of High load-bearing capacity, impact resistant, self-aligning, and easy to install, and are therefore widely used in the Wind turbine main shaft, large ship main shaft, giant construction machinery.
| Part Number | 241/560 ECAK30/W33 |
| Manufacturer Part Code | 241/560ECAK30/W33 |
| Internal design | E = Optimized internal design for increased load carrying capacity; CA = Retaining flanges on the inner ring, guide ring centred on the inner ring, machined brass cage |
| Bearing Type | Spherical roller bearings, double row |
| m Weight [lb] | 1984.140 |
| Seal type | Open |
| Series | 241..-ECAK30/W33 |
| Cage | CA = brass cage |
| Lubrication | W33 = Annular groove and three lubrication holes in the outer ring |
| Bore Type | K30 = Tapered bore, taper 1:30 |
| Radial internal clearance | CN |
| Units | Metric |
| Cr Dynamic Radial [lbf] | 2780081 |
| C0r Static Radial [lbf] | 4851157 |
| Pu Fatigue Radial [lbf] | 296559 |
| Operating temperature - T(min) [°C] | -30 |
| Operating temperature - T(max) [°C] | +200 |
| nB Speed ratings (grease) [rpm] | 195 |
| nG Speed ratings (oil) [rpm] | 295 |
| Heat stabilization | 392 °F (200 °C) |
| Dimension | |
| d φ Inside [inch] | 22.047 |
| D Φ Outside [inch] | 36.220 |
| B Width [inch] | 13.976 |
| b [inch] | 0.878 |
| K [inch] | 0.472 |
| d2 [inch] | 25.079 |
| D1 [inch] | 31.260 |
| ra(max.) Fillet [inch] | 0.236 |
| r1,r2(min.) Fillet [inch] | 0.295 |
| Angular misalignment | 2.5 degrees |
| Da(max.) [inch] | 34.961 |
| Calculation factor | |
| e | 0.35 |
| Y1 | 1.9 |
| Y2 | 2.9 |
| Y0 | 1.8 |
The 241/560 ECAK30/W33 Double-row spherical roller bearings mainly consist of an inner ring, an outer ring, two rows of spherical rollers, a cage, and seals. The outer ring raceway has a spherical structure, while the inner ring has a double-row raceway. The rollers and raceways are logarithmically curved. The cage is typically made of stamped steel or machined brass.
Double-row spherical roller bearings possess excellent self-aligning properties, compensating for shaft deflection, installation errors, and misalignment. They can simultaneously withstand radial loads and bidirectional axial loads, exhibiting extremely high load-bearing capacity and strong impact resistance. Furthermore, the internal clearance can be optimized for vibration conditions, effectively reducing frictional temperature rise.
