24028S.528857 Bore 140 Mm, Spherical Roller Bearings For Bar Mills For Loose Fit On The Roll Neck, Machined Brass Cage
The 24028S.528857 Rolling mill bearings are mainly suitable for applications such as floating ends that bear medium to heavy radial loads and need to accommodate shaft thermal expansion, or roll necks that need to bear combined radial and axial loads, as well as gear drives.
The 24028S.528857 bearing is a Spherical Roller Bearings for Bar Mills for loose fit on the roll neck with an inner diameter of 140 mm , an outer diameter of 210 mm, a width of 69 mm. inner rings made of case hardening steel rings, Bearing steel rolling mlement. It primarily bears Radial and axial loads, Its dynamic radial rated load is approximately 530000 N, its static radial rated load is approximately 950000 N. It uses C2 standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
24028S.528857 bearings ( 140 mm x 210 mm x 69 mm) have the advantages of Extremely high load-bearing capacity and rigidity, and are therefore widely used in the Hot rolling, cold rolling, and wire rod mills.
| Part Number | 24028S.528857 |
| Interchangeable | FAG 24028S.528857 |

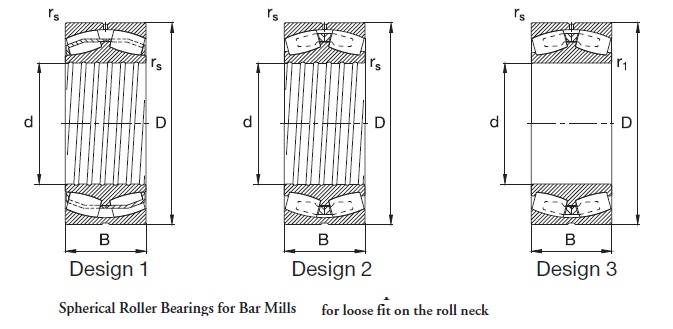

| Desgin Figure | 2 |
| Cage | Machined Brass Cage |
| Radial internal clearance | C2 |
| Seal | Open |
| Bearing Type | Spherical Roller Bearings for Bar Mills for loose fit on the roll neck |
| Bearing Weight [lb] | 18.739 |
| d φ Inside [inch] | 5.512 |
| D Φ Outside [inch] | 8.268 |
| B Width [inch] | 2.717 |
| rs min Chamfer | 2 mm |
| Cr Radial Dynamic [lbf] | 119144 |
| C0r Radial Static [lbf] | 213560 |
| Factor | |
| e | 0.32 |
| Y1 | 2.1 |
| Y2 | 3.13 |
| Y0 | 2.06 |
