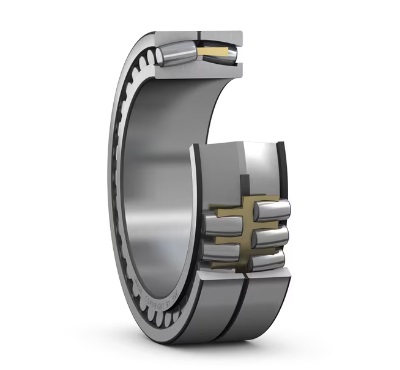

240/530 ECAK30/W33 Spherical Roller Bearings, Brass Cage

🔍

240/530 ECAK30/W33

Bore Diameter:530 mm

Outside Diameter:780 mm

Width:250 mm

Weight:410 kg

Min. Order:1 Piece

The 240/530 ECAK30/W33 Double-row spherical roller bearings are suitable for heavy-load, impact, and eccentric conditions. Classic applications include vibrating screen exciters, crushers, fans, paper machine press rolls, mining conveyor equipment, and marine propulsion shafts.

The 240/530 ECAK30/W33 bearing is a Spherical roller bearings, double row with an inner diameter of 530 mm , an outer diameter of 780 mm, a width of 250 mm. High-carbon chromium steel rings, High-carbon chromium steel rolling mlement. Its dynamic radial rated load is approximately 6967899 N, its static radial rated load is approximately 13194842 N. It uses Normal standard radial clearance, open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

530 mm

Outside Diameter:

780 mm

Thickness:

250 mm

Weight:

410 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

6967899 N

Static load Capacity, Radial (Cor):

13194842 N

Reference speed (Grease rpm):

384

Limiting speed (Oil rpm):

655

Specifications:

Old Designations:

240/530ECAK30/W33

Structure:

Spherical Roller Bearings

Number of Rows:

Radial Clearance Trade No.:

Normal

Bearing Material:

High-carbon chromium steel

Cage Type:

CA = brass cage

Seals Type:

open

Rolling Mlement Material:

High-carbon chromium steel

Bore Type:

K30 = Tapered bore, taper 1:30

Operating Temperature:

-30 to +200 °C

System of Measurement:

Metric

Series:

240..-ECAK30/W33

Rolling Element:

spherical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

240/530 ECAK30/W33 bearings ( 530 mm x 780 mm x 250 mm) have the advantages of High load-bearing capacity, impact resistant, self-aligning, and easy to install, and are therefore widely used in the Wind turbine main shaft, large ship main shaft, giant construction machinery.

Part Number	240/530 ECAK30/W33
Manufacturer Part Code	240/530ECAK30/W33
Internal design	E = Optimized internal design for increased load carrying capacity; CA = Retaining flanges on the inner ring, guide ring centred on the inner ring, machined brass cage
Bearing Type	Spherical roller bearings, double row
m Weight [lb]	903.886
Seal type	open
Series	240..-ECAK30/W33
Cage	CA = brass cage
Lubrication	W33 = Annular groove and three lubrication holes in the outer ring
Bore Type	K30 = Tapered bore, taper 1:30
Radial internal clearance	Normal
Units	Metric
C_r Dynamic Radial [lbf]	1566383
C_0r Static Radial [lbf]	2966200
P_u Fatigue Radial [lbf]	185438
Operating temperature - T(min) [°C]	-30
Operating temperature - T(max) [°C]	+200
n_B Speed ratings (grease) [rpm]	384
n_G Speed ratings (oil) [rpm]	655
Heat stabilization	392 °F (200 °C)
Dimension
d φ Inside [inch]	20.866
D Φ Outside [inch]	30.709
B Width [inch]	9.843
b [inch]	0.878
K [inch]	0.472
d₂ [inch]	23.661
D₁ [inch]	27.047
r_a(max.) Fillet [inch]	0.197
r₁,r₂(min.) Fillet [inch]	0.236
Angular misalignment	2 degrees
Abutment dimensions
d_a(min.) [inch]	21.772
D_a(max.) [inch]	29.803
Calculation factor
e	0.28
Y₁	2.4
Y₂	3.6
Y₀	2.5

The 240/530 ECAK30/W33 Double-row spherical roller bearings mainly consist of an inner ring, an outer ring, two rows of spherical rollers, a cage, and seals. The outer ring raceway has a spherical structure, while the inner ring has a double-row raceway. The rollers and raceways are logarithmically curved. The cage is typically made of stamped steel or machined brass.

Double-row spherical roller bearings possess excellent self-aligning properties, compensating for shaft deflection, installation errors, and misalignment. They can simultaneously withstand radial loads and bidirectional axial loads, exhibiting extremely high load-bearing capacity and strong impact resistance. Furthermore, the internal clearance can be optimized for vibration conditions, effectively reducing frictional temperature rise.
