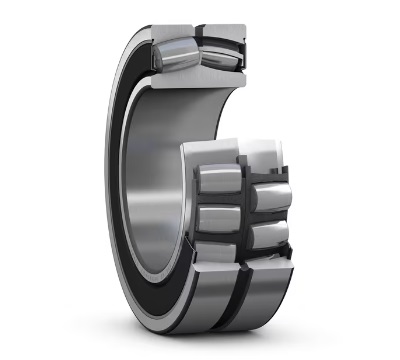

23076-2CS5K/VT143 Spherical Roller Bearings, Stamping Steel Cage, Tapered Bore

🔍

23076-2CS5K/VT143

Bore Diameter:380 mm

Outside Diameter:560 mm

Width:135 mm

Weight:108 kg

Min. Order:1 Piece

The 23076-2CS5K/VT143 Double-row spherical roller bearings are suitable for heavy-load, impact, and eccentric conditions. Classic applications include vibrating screen exciters, crushers, fans, paper machine press rolls, mining conveyor equipment, and marine propulsion shafts.

The 23076-2CS5K/VT143 bearing is a Sealed spherical roller bearings with an inner diameter of 380 mm , an outer diameter of 560 mm, a width of 135 mm. High-carbon chromium steel rings, High-carbon chromium steel rolling mlement. Its dynamic radial rated load is approximately 2978902 N, its static radial rated load is approximately 4991828 N. It uses CN standard radial clearance, 2CS5 = Contact seal, HNBR, on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

380 mm

Outside Diameter:

560 mm

Thickness:

135 mm

Weight:

108 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

2978902 N

Static load Capacity, Radial (Cor):

4991828 N

Limiting speed (Oil rpm):

236

Specifications:

Structure:

Spherical Roller Bearings

Number of Rows:

Radial Clearance Trade No.:

Bearing Material:

High-carbon chromium steel

Cage Type:

Stamping steel cage

Seals Type:

2CS5 = Contact seal, HNBR, on both sides

Rolling Mlement Material:

High-carbon chromium steel

Bore Type:

K = Tapered bore, taper 1:12

Operating Temperature:

-30 to +200 °C

System of Measurement:

Metric

Series:

230..-2CS5K/VT143

Rolling Element:

spherical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

23076-2CS5K/VT143 bearings ( 380 mm x 560 mm x 135 mm) have the advantages of Small cross-section, high load-bearing capacity, self-aligning, and low friction, and are therefore widely used in the Gearbox, motor, space-constrained transmission components.

Part Number	23076-2CS5K/VT143
Manufacturer Part Code	23076-2CS5K/VT143
Bearing Type	Sealed spherical roller bearings
m Weight [lb]	238.097
Seal type	2CS5 = Contact seal, HNBR, on both sides
Series	230..-2CS5K/VT143
Cage	Stamping steel cage
Lubrication	VT143 = Filled to 25 – 45% with LGEP 2 grease
Bore Type	K = Tapered bore, taper 1:12
Radial internal clearance	CN
Units	Metric
Sealing type	Contact
C_r Dynamic Radial [lbf]	669657
C_0r Static Radial [lbf]	1122162
P_u Fatigue Radial [lbf]	80763
Operating temperature - T(min) [°C]	-30
Operating temperature - T(max) [°C]	+200
n_G Speed ratings (oil) [rpm]	236
Heat stabilization	392 °F (200 °C)
Dimension
d φ Inside [inch]	14.961
D Φ Outside [inch]	22.047
B Width [inch]	5.315
b [inch]	0.878
K [inch]	0.472
d₂ [inch]	16.496
D₁ [inch]	20.827
r_a(max.) Fillet [inch]	0.157
r₁,r₂(min.) Fillet [inch]	0.197
Angular misalignment	1.5 degrees
D_a(max.) [inch]	21.339
Calculation factor
e	0.2
Y₁	3.4
Y₂	5
Y₀	3.2

The 23076-2CS5K/VT143 Double-row spherical roller bearings mainly consist of an inner ring, an outer ring, two rows of spherical rollers, a cage, and seals. The outer ring raceway has a spherical structure, while the inner ring has a double-row raceway. The rollers and raceways are logarithmically curved. The cage is typically made of stamped steel or machined brass.

Double-row spherical roller bearings possess excellent self-aligning properties, compensating for shaft deflection, installation errors, and misalignment. They can simultaneously withstand radial loads and bidirectional axial loads, exhibiting extremely high load-bearing capacity and strong impact resistance. Furthermore, the internal clearance can be optimized for vibration conditions, effectively reducing frictional temperature rise.
