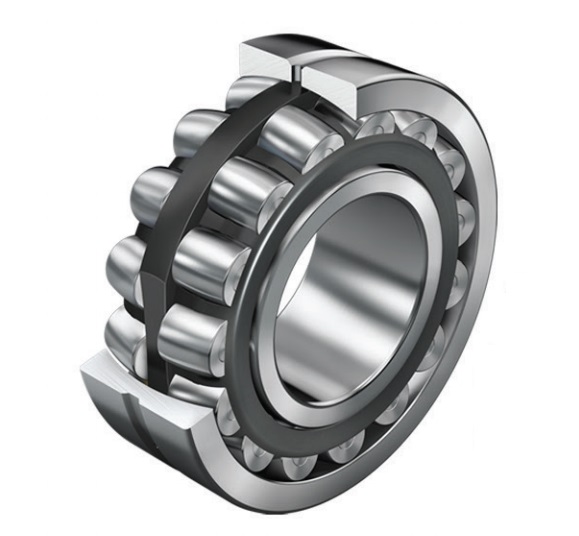

22317 CCJA W33 VA405 Bore 85 Mm, Stamped Steel Cage, Spherical Roller Bearings, VA405 = Bearing For Vibratory Applications, Surface-hardened Stamped Steel Cages
The 22317 CCJA W33 VA405 Spherical roller bearings are suitable for harsh working conditions with high humidity, dust, and strong vibration and impact. Classic applications include vibrating screen exciters, crushers, vibrating motors, vibrating rollers, mining vibrating machinery, and saw frames, among other vibrating equipment.
The 22317 CCJA W33 VA405 bearing is a Spherical roller bearings, double row with an inner diameter of 85 mm , an outer diameter of 180 mm, a width of 60 mm. GCr15SiMn rings, GCr15SiMn rolling mlement. It uses C4 standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
22317 CCJA W33 VA405 bearings ( 85 mm x 180 mm x 60 mm) have the advantages of Vibration resistant, impact resistant, high temperature resistant, self-aligning, and are therefore widely used in the Heavy-duty vibrating screens for mining, metallurgy, construction, and coal industries..
| Part Number | 22317 CCJA W33 VA405 |
| Bearing Type | Spherical roller bearings, double row |
| Internal design | CCJA = Flangeless inner ring, guide ring centred on the outer ring raceway, two stamped steel cages |
| Reference From | SKF 22317 CCJA W33 VA405 |
| Cage | JA = Stamped steel cage, outer ring centred |
| Seal | Open |
| Internal clearance | C4 |
| Weight [lb] | 16.094 |
| Permissible angular misalignment | 3 degrees |
| Heat stabilization | 392 °F (200 °C) |
| Roller bearing type | Spherical |
| Lubrication | W33 = Annular groove and three lubrication holes in the outer ring |
| Bore Type | Z = cylindrical bore |
| Other variants | VA405 = Bearing for vibratory applications, surface-hardened stamped steel cages |
| Principal Dimensions | |
| Inside - d φ [inch] | 3.346 |
| Inside - d φ tolerance | -0.02 mm to 0 |
| Outside - D Φ [inch] | 7.087 |
| Outside - D Φ tolerance | -0.025 mm to 0 |
| Width - B [inch] | 2.362 |
| Width - B tolerance | -0.08 mm to 0 |
| d2 [inch] | 4.252 |
| D1 [inch] | 6.063 |
| b [inch] | 0.327 |
| K [inch] | 0.177 |
| r1,r2(min.) [inch] | 0.118 |
| Performance | |
| Dynamic Radial - Cr [lbf] | 129640 |
| Static Radial - C0r [lbf] | 139162 |
| Speed ratings (oil) - nG [rpm] | 3775 |
The 22317 CCJA W33 VA405 Spherical roller bearings mainly consist of an inner ring, an outer ring, two rows of drum-shaped rollers, and a cage. The outer ring raceway has a spherical structure, while the inner ring has a double-row raceway. The cage is typically a machined brass or stamped steel solid structure guided by the outer ring to adapt to high-frequency vibration conditions.
Spherical roller bearings possess self-aligning properties, compensating for shaft deflection and installation misalignment. They can simultaneously withstand radial and bidirectional axial loads, exhibiting high load-bearing capacity and strong impact resistance. Furthermore, their internal clearance and cage guidance method are optimized for vibration conditions, effectively reducing frictional temperature rise.
