22211 E/C4 Spherical Roller Bearings, Stamped Steel Cages

🔍

22211 E/C4

Bore Diameter:55 mm

Outside Diameter:100 mm

Width:25 mm

Weight:0.84 kg

Min. Order:1 Piece

The 22211 E/C4 Double-row spherical roller bearings are suitable for heavy-load, impact, and eccentric conditions. Classic applications include vibrating screen exciters, crushers, fans, paper machine press rolls, mining conveyor equipment, and marine propulsion shafts.

The 22211 E/C4 bearing is a Spherical roller bearings, double row with an inner diameter of 55 mm , an outer diameter of 100 mm, a width of 25 mm. High-carbon chromium steel rings, High-carbon chromium steel rolling mlement. Its dynamic radial rated load is approximately 128874 N, its static radial rated load is approximately 126797 N. It uses C4 standard radial clearance, open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

55 mm

Outside Diameter:

100 mm

Thickness:

25 mm

Weight:

0.84 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

128874 N

Static load Capacity, Radial (Cor):

126797 N

Reference speed (Grease rpm):

6281

Limiting speed (Oil rpm):

8459

Specifications:

Old Designations:

22211E/C4

Structure:

Spherical Roller Bearings

Number of Rows:

Radial Clearance Trade No.:

Bearing Material:

High-carbon chromium steel

Cage Type:

stamped steel cages

Seals Type:

open

Rolling Mlement Material:

High-carbon chromium steel

Bore Type:

Z = cylindrical bore

Operating Temperature:

-30 to +200 °C

System of Measurement:

Metric

Series:

222..-E

Rolling Element:

spherical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

22211 E/C4 bearings ( 55 mm x 100 mm x 25 mm) have the advantages of Self-aligning, high load-bearing capacity, impact resistant, and adaptable to heavy loads, and are therefore widely used in the Gearboxes, drive shafts, conveying equipment, general machinery.

Part Number	22211 E/C4
Manufacturer Part Code	22211E/C4
Internal design	E = Optimized internal design for increased load carrying capacity, Flangeless inner ring and two stamped steel cages Annular groove and three lubrication holes in the outer ring, Guide ring centred on the inner ring
Bearing Type	Spherical roller bearings, double row
m Weight [lb]	1.852
Seal type	open
Series	222..-E
Cage	stamped steel cages
Bore Type	Z = cylindrical bore
Radial internal clearance	C4
Units	Metric
C_r Dynamic Radial [lbf]	28970
C_0r Static Radial [lbf]	28503
P_u Fatigue Radial [lbf]	3065
Operating temperature - T(min) [°C]	-30
Operating temperature - T(max) [°C]	+200
n_B Speed ratings (grease) [rpm]	6281
n_G Speed ratings (oil) [rpm]	8459
Heat stabilization	392 °F (200 °C)

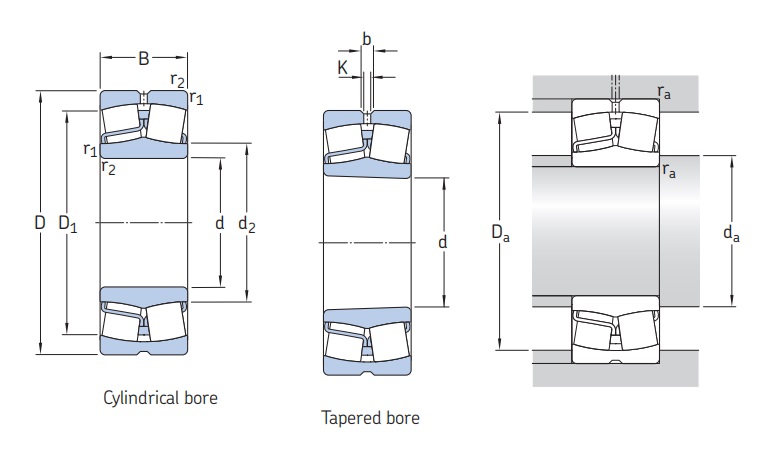

Dimension
d φ Inside [inch]	2.165
D Φ Outside [inch]	3.937
B Width [inch]	0.984
b [inch]	0.236
K [inch]	0.118
d₂ [inch]	2.571
D₁ [inch]	3.465
r_a(max.) Fillet [inch]	0.059
r₁,r₂(min.) Fillet [inch]	0.059
Angular misalignment	1.5 degrees
Abutment dimensions
d_a(min.) [inch]	2.520
D_a(max.) [inch]	3.583
Calculation factor
e	0.24
Y₁	2.8
Y₂	4.2
Y₀	2.8

The 22211 E/C4 Double-row spherical roller bearings mainly consist of an inner ring, an outer ring, two rows of spherical rollers, a cage, and seals. The outer ring raceway has a spherical structure, while the inner ring has a double-row raceway. The rollers and raceways are logarithmically curved. The cage is typically made of stamped steel or machined brass.

Double-row spherical roller bearings possess excellent self-aligning properties, compensating for shaft deflection, installation errors, and misalignment. They can simultaneously withstand radial loads and bidirectional axial loads, exhibiting extremely high load-bearing capacity and strong impact resistance. Furthermore, the internal clearance can be optimized for vibration conditions, effectively reducing frictional temperature rise.
