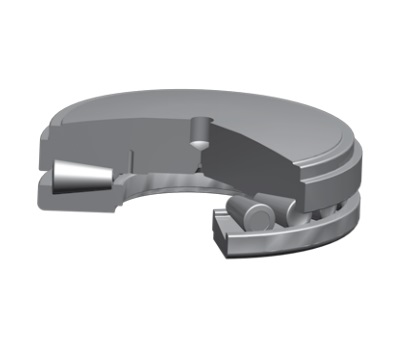

206TTSX942 Screwdown Bearings, Heavy-duty Thrust Tapered Roller Bearing Having One Flat And One Tapered Raceway
The 206TTSX942 Thrust tapered roller bearings are suitable for heavy-duty, high-rigidity axial load applications. Classic applications include crane slewing mechanisms, oil drilling rig rotary tables, rolling mill pressing mechanisms, heavy machine tool spindles, ship propeller thrust shafts, and the axial positioning ends of large gearboxes.
The 206TTSX942 bearing is a thrust tapered roller bearing, screwdown bearings, Heavy-duty thrust tapered roller bearing having one flat and one tapered raceway with an an outer diameter of 523.875 mm, a width of 175.768 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. its static axial rated load is approximately 35623454 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
206TTSX942 bearings (523.875 mm x 175.768 mm) have the advantages of Withstanding extremely large and heavy unidirectional axial thrust, and are therefore widely used in the heavily loaded extruders, cone crushers.
| Part Number | 206TTSX942 |
| Design type | TTHDFLSX-1: Screwdown thrust tapered roller bearing with one convex profile race |
| Bearing Type | thrust tapered roller bearing, screwdown bearings, Heavy-duty thrust tapered roller bearing having one flat and one tapered raceway |
| Interchangeable | TIMKEN 206TTSX942 |
| Manufacturer Part Code | 206 TTSX 942 |
| Series | TTSX |
| Units | Inch |
| Tolerance class | PN (ABEC-1) |
| C0a Axial Static [lbf] | 8008152 |
| D Φ Outside [inch] | 20.6250 |
| T Width [inch] | 6.9200 |
| T1 Cage Position [inch] | 1.3750 |
| Rs [inch] | 49.9999 |
| rs max [inch] | 0.1181 |
| D1 [inch] | 20.5320 |
| H Screw Extension Diameter [inch] | 18.0000 |
| Weight [lb] | 568.7868 |
| Tolerance Table | 10, 11 |
The 206TTSX942 Thrust tapered roller bearings mainly consist of a shaft ring, a housing ring, tapered rollers, and a cage. The raceways of the shaft ring and housing ring have a conical surface structure, and the rollers make line contact with the raceways. The cage is typically made of machined brass or stamped steel to ensure proper roller guidance.
Thrust tapered roller bearings can withstand enormous unidirectional axial loads and also possess a certain radial load-bearing capacity, far exceeding that of thrust ball bearings. They offer high rigidity, strong impact resistance, and precise axial positioning and preload can be achieved through the tapered roller structure.
