201tVL615 Single-row Angular Contact Thrust Ball Bearing

🔍

201tVL615

Bore Diameter:511.175 mm

Outside Diameter:628.65 mm

Width:66.675 mm

Weight:41.9 kg

Min. Order:1 Piece

The 201tVL615 Thrust angular contact ball bearings are mainly suitable for applications requiring high speed, low friction, and simultaneous axial and certain radial loads, such as fluid control valves, machine tool worktables and spindles, and rotary tables in the oil and gas drilling industry.

The 201tVL615 bearing is a Single-row angular contact thrust ball bearing with an inner diameter of 511.175 mm , an outer diameter of 628.65 mm, a width of 66.675 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic axial rated load is approximately 488395 N, its static axial rated load is approximately 2517774 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

511.175 mm

Outside Diameter:

628.65 mm

Thickness:

66.675 mm

Weight:

41.9 KG

Dynamic load Capacity, axial:

488395 N

Static load Capacity, axial:

2517774 N

Specifications:

Structure:

Thrust Angular Contact Ball Bearings

Number of Rows:

One

Precision Rating:

PN (ABEC-1)

Bearing Material:

bearing steel

Rolling Mlement Material:

bearing steel

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 110 °C

System of Measurement:

Metric

Series:

TVL

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

201tVL615 bearings ( 511.175 mm x 628.65 mm x 66.675 mm) have the advantages of Composite load, high speed, high rigidity, and are therefore widely used in the rotary tables of oil and gas drilling rigs.

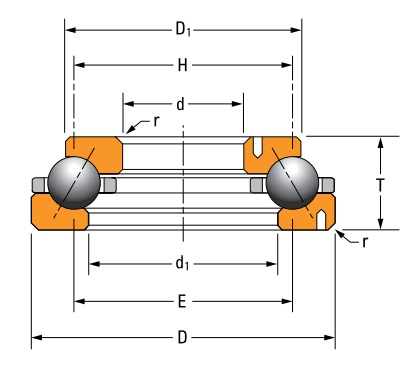

Part Number	201tVL615
Design type	TVL: Single-row angular contact construction
Bearing Type	Single-row angular contact thrust ball bearing
Interchangeable	TIMKEN 201tVL615
Manufacturer Part Code	201 TVL 615
Series	TVL
Units	Metric
Tolerance class	PN (ABEC-1)
C_0a Axial Static [lbf]	565995
C_a Axial Dynamic [lbf]	109791
d φ Inside [inch]	20.1250
D Φ Outside [inch]	24.7500
T Width [inch]	2.6250
r Fillet Radius [inch]	0.1260
d₁ [inch]	21.6252
D₁ [inch]	23.2500
E (Max) Shoulder Diameter Housing [inch]	22.4370
H (Min) Shoulder Diameter Shaft [inch]	22.4370
Dowel Pin (Pin Dia.) [inch]	0.5000
Hole Location (Small Bore Ring) [inch]	10.5630
Hole Location (Large Bore Ring) [inch]	11.8110
Weight [lb]	92.3727

The 201tVL615 Thrust angular contact ball bearings are mainly composed of precision-ground steel balls, hardened and ground steel raceways, and a brass (or bronze) cage. Their core characteristic is their ability to simultaneously withstand axial thrust loads and a certain amount of radial load, and they also feature low friction, quiet operation, and suitability for high-speed operation.
