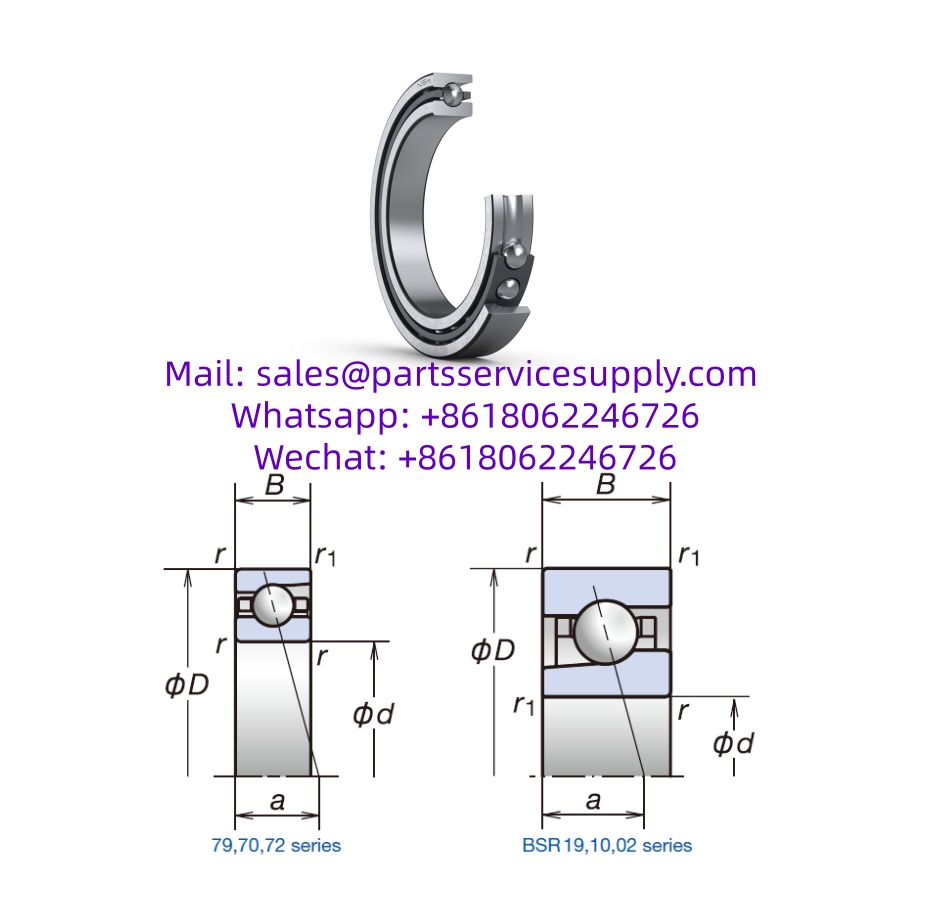

12BSR02X Angular Contact Ball Bearing (Size: 12x32x10mm)

🔍

12BSR02X

Bore Diameter:12 mm

Outside Diameter:32 mm

Width:10 mm

Weight:0.035 kg

Min. Order:1 Piece

The 12BSR02X bearing is a Angular Contact Ball Bearings with an inner diameter of 12 mm , an outer diameter of 32 mm, a width of 10 mm. Its dynamic radial rated load is approximately 10.10 (kN), its static radial rated load is approximately 1.89 (kN). Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Machine tool spindles, High-speed micro motors, Robotics and automation components, Precision instrumentation

Dimensions:

Inside Diameter:

12 mm

Outside Diameter:

32 mm

Thickness:

10 mm

Weight:

0.035 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

10.10 (kN)

Static load Capacity, Radial (Cor):

1.89 (kN)

Reference speed (Grease rpm):

100000

Limiting speed (Oil rpm):

137000

Specifications:

HS Code:

8482103090

Structure:

Ball Bearing

Number of Rows:

Single

Demensions:

12x32x10

Brand:

Neutral Product

Bearing Material:

Bearing Steel

Seals Type:

Open

Contact Angle:

Bore Type:

Cylindrical

System of Measurement:

Metric

Rolling Element:

Ball

Transaction Information:

Transport Package:

Standard Export Package

Shipping Ways:

by Sea or Air

Country of Origin:

China

Stock:

1000 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

12BSR02X Angular Contact Ball Bearing, High Precision, High Speed and High Load Carrying Capacity.

Size: 12x32x10mm

Inner Diameter (d): 12 mm

Outer Diameter (D): 32 mm

Width (B): 10 mm

Contact Angle: 15° degree

HS Code: 8482103090

Angular Contact Ball Bearing
Part No.	Boundary Dimensions					Basic Loading Ratings (kN)		Contact Angle (°)	Limiting Speeds (min)		Mass
Part No.	d	D	B	r (min.)	r1 (min.)	Cr (Dynamic)	Cor (Static)	Contact Angle (°)	Grease	Oil	kg
12BSR02X	12	32	10	0.6	0.3	10.10	1.89	15	100000	137000	0.035

Contact Angle:

Standard Series: C: 15°, A5: 25°, A: 30°

Robust Series: BNR, BNRD: 18°, BER, BERD: 25°, BSR: 15°

Material:

Standard Series:

No Code: Steel Ball SN24: Ceramic Ball

Robust Series:

S: Bearing Steel Inner, Outer Ring & Ball

E: Bearing Steel Inner, Outer Ring & Ultra Long Life Steel Rolling Elements

H: Bearing Steel Inner &Outer Ring, Ceramic Balls

J: Ultra Long Life Steel Inner &Outer Ring, Ceramic Balls

X: High Resistant Steel Inner &Outer Ring, Ceramic Balls

XE: High Resistant Steel Inner &Outer Ring, Ceramic Balls

Cage:

TYN: Polyamide Resin

TR, T, TX, TA: Phenolic Resin

TSR: PPS Resin

MY: Brass

Common Applications:

Machine tool spindles

High-speed micro motors

Robotics and automation components

Precision instrumentation

Angular contact ball bearings feature offset inner and outer raceways designed to handle combined loads (simultaneous radial and axial forces). Because a radial load creates an axial force, they must be assembled with a preload and are typically mounted in pairs, trios, or quartets to ensure structural rigidity.

All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.
