11-200741/1-02142 Four-point Contact Ball Slewing Bearing With External Gear

🔍

11-200741/1-02142

Bore Diameter:672 mm

Outside Diameter:838.8 mm

Width:56 mm

Weight:58 kg

The 11-200741/1-02142 bearing is a Slewing bearing / Slewing ring with an inner diameter of 672 mm , an outer diameter of 838.8 mm, a width of 56 mm. It typically uses P0 grade precision tolerances and Rubber/Fluororubber seals type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

672 mm

Outside Diameter:

838.8 mm

Thickness:

56 mm

Weight:

58 KG

Specifications:

Structure:

Four-point Contact Ball Slewing Bearing

Precision Rating:

Bearing Material:

50Mn/42CrMo

Seals Type:

Rubber/Fluororubber seals

Transaction Information:

Payment term:

30%TT in advance the balance 70%TT before shipping

Delivery time:

Detailed description

Bearing model:11-200741/1-02142 Four-point Contact Ball Slewing Bearing with External gear
Inner Diameter (ID) :672 mm
Outer diameter (OD) :838.8 mm
Width/Height: 56 mm
External Gear Teeth
Moudle: M=6
NO. of teeth: Z=138
Modification coefficient: X=0
Material:50Mn/42CrMo
Seals type: Rubber/Fluororubber seals
Lubrication: Grease

It is widely used in hoister transportation, mining, architecture, harbor machinery, shipping mechanism, radar machinery of high accuracy, and large-scale rotary devices on aspect of missile launcher.

Share this product to:

Let more people see your product

How can you buy 11-200741/1-02142 Four-point Contact Ball Slewing Bearing With External Gear on the Internet?
High quality 11-200741/1-02142 ( 58 kg Mass, ID: 672 mm OD: 838.8 mm WD: 56 mm , P0 Accuracy Class , 50Mn/42CrMo Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 11-200741/1-02142. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- VSA 20 0414N Slewing bearing
- Bearing model: VSA 20 0414N Four-point Contact Ball bearing Inner Diameter (ID):342mm Outer diameter
- 32-0411-01 Four-point Contact Ball Slewing Bearing Price
- It is widely used in hoister transportation, mining, architecture, harbor machinery, shipping

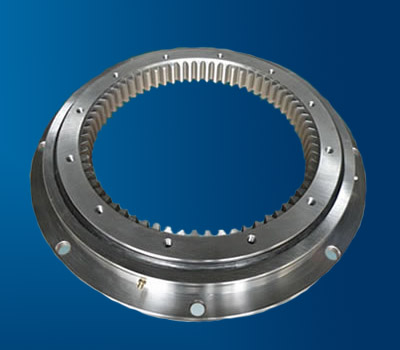

- VLI 20 0544N Internal Gear Teeth slewing bearing
