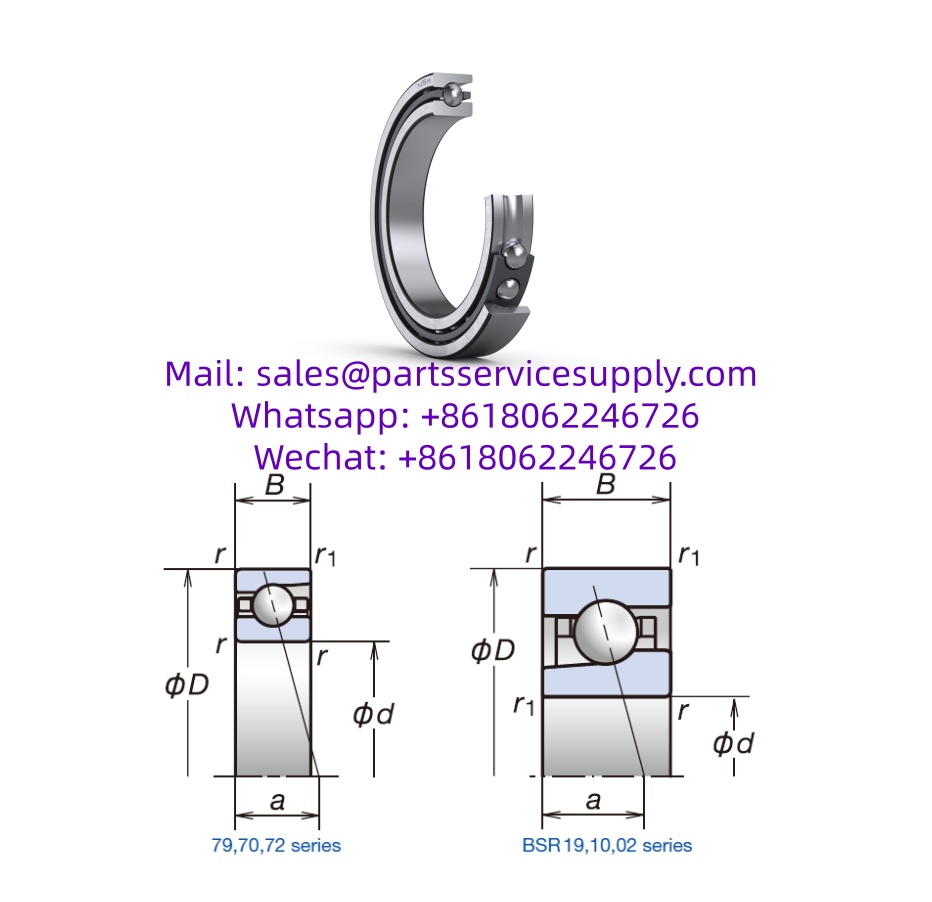

10BSR19X Angular Contact Ball Bearing (Size: 10x22x6mm)
The 10BSR19X bearing is a Angular Contact Ball Bearings with an inner diameter of 10 mm , an outer diameter of 22 mm, a width of 6 mm. Its dynamic radial rated load is approximately 3.55 (KN), its static radial rated load is approximately 0.685 (kN). Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Application: Machine tool spindles, High-speed micro motors, Robotics and automation components, Precision instrumentation
10BSR19X Angular Contact Ball Bearing, High Precision, High Speed and High Load Carrying Capacity.
Size: 10x22x6mm
Inner Diameter (d): 10 mm
Outer Diameter (D): 22 mm
Width (B): 6 mm
Contact Angle: 15° degree
HS Code: 8482103090
|
Angular Contact Ball Bearing |
|||||||||||
|
Part No. |
Boundary Dimensions |
Basic Loading Ratings (kN) |
Contact Angle (°) |
Limiting Speeds (min) |
Mass |
||||||
|
d |
D |
B |
r (min.) |
r1 (min.) |
Cr (Dynamic) |
Cor (Static) |
Grease |
Oil |
kg |
||
|
10BSR19X |
10 |
22 |
6 |
0.3 |
0.15 |
3.55 |
0.685 |
15 |
138000 |
188000 |
0.010 |
Contact Angle:
Standard Series: C: 15°, A5: 25°, A: 30°
Robust Series: BNR, BNRD: 18°, BER, BERD: 25°, BSR: 15°
Material:
Standard Series:
No Code: Steel Ball SN24: Ceramic Ball
Robust Series:
S: Bearing Steel Inner, Outer Ring & Ball
E: Bearing Steel Inner, Outer Ring & Ultra Long Life Steel Rolling Elements
H: Bearing Steel Inner &Outer Ring, Ceramic Balls
J: Ultra Long Life Steel Inner &Outer Ring, Ceramic Balls
X: High Resistant Steel Inner &Outer Ring, Ceramic Balls
XE: High Resistant Steel Inner &Outer Ring, Ceramic Balls
Cage:
TYN: Polyamide Resin
TR, T, TX, TA: Phenolic Resin
TSR: PPS Resin
MY: Brass
Common Applications:
Machine tool spindles
High-speed micro motors
Robotics and automation components
Precision instrumentation
Angular contact ball bearings feature offset inner and outer raceways designed to handle combined loads (simultaneous radial and axial forces). Because a radial load creates an axial force, they must be assembled with a preload and are typically mounted in pairs, trios, or quartets to ensure structural rigidity.
All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.
Share this product to:
Let more people see your product
-
- 5200 Angular Contact Ball Bearing 10x30x14.287mm
- 5200 Angular Contact Ball Bearing / Double Row Angular Contact Ball Bearing Bearing
-
- 234940X (Size: 207x280x96mm) Axial Angular Contact Ball Bearing
- 234940X Double Direction Angular Contact Thrust Ball Bearing for use in machine
-
- QJF226 (Size:130x230x40mm) Four Point Contact Ball Bearing for Rolling Mill
- QJF226 Four Point Angular Contact Ball Bearing for Rolling Mill Size: 130x230x40mm Inner Diameter
-
- 5215-2RS Angular Contact Ball Bearing 75x130x41.275mm
- 5215-2RS Angular Contact Ball Bearing / Double Row Angular Contact Ball Bearing Bearing
-

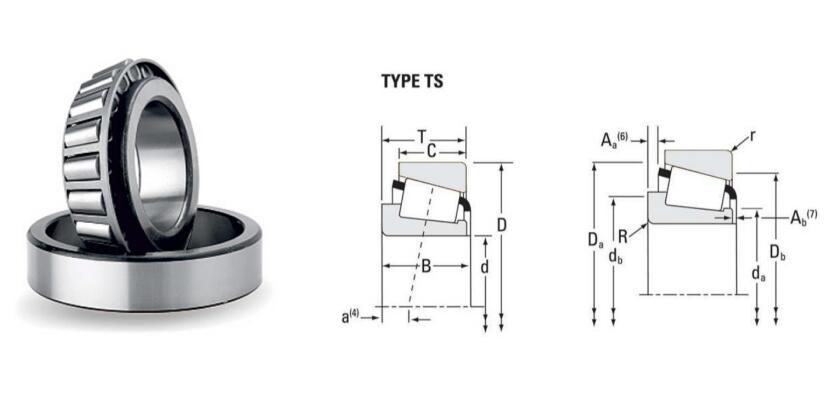

- 05079/05185 Tapered Roller Bearing (Size:0.7869x1.8504x0.5662 inch)
