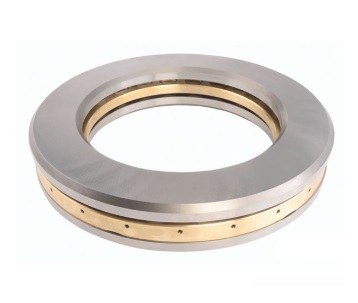

100 TP 145 Thrust Cylindrical Roller Bearing, Window-type Steel Cage

🔍

100 TP 145

Bore Diameter:254 mm

Outside Diameter:508 mm

Width:95.25 mm

Weight:91.7 kg

Min. Order:1 Piece

The 100 TP 145 Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.

The 100 TP 145 bearing is a Thrust cylindrical roller bearing with an inner diameter of 254 mm , an outer diameter of 508 mm, a width of 95.25 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic axial rated load is approximately 2997137 N, its static axial rated load is approximately 15595983 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

254 mm

Outside Diameter:

508 mm

Thickness:

95.25 mm

Weight:

91.7 KG

Dynamic load Capacity, axial:

2997137 N

Static load Capacity, axial:

15595983 N

Limiting speed (Oil rpm):

551

Specifications:

Old Designations:

100TP145

Structure:

Cylindrical Roller Thrust Bearings

Number of Rows:

Two or Three

Precision Rating:

PN (ABEC-1)

Bearing Material:

bearing steel

Cage Type:

window-type steel cage

Rolling Mlement Material:

bearing steel

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 110 °C

System of Measurement:

Metric

Series:

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

100 TP 145 bearings ( 254 mm x 508 mm x 95.25 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.

Part Number	100 TP 145
Design type	TP: Two or three cylindrical rollers per cage pocket
Bearing Type	Thrust cylindrical roller bearing
Interchangeable	TIMKEN 100 TP 145
Manufacturer Part Code	100TP145
Series	TP
Cage	window-type steel cage
Units	Metric
Tolerance class	PN (ABEC-1)
C_0a Axial Static [lbf]	3505976
C_a Axial Dynamic [lbf]	673756
n_G Speed ratings (oil) [rpm]	551
d φ Inside [inch]	10.0000
D Φ Outside [inch]	20.0000
T Width [inch]	3.7500
T₁ Cage Position [inch]	1.0311
r Fillet Radius [inch]	0.2520
d₁ [inch]	10.0937
D₁ [inch]	19.9063
E (Max) Shoulder Diameter Housing [inch]	11.0630
H (Min) Shoulder Diameter Shaft [inch]	18.9370
Weight [lb]	202.1618

The 100 TP 145 Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.

The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.

Share this product to:

Let more people see your product

How can you buy 100 TP 145 Thrust Cylindrical Roller Bearing, Window-type Steel Cage on the Internet?
High quality 100 TP 145 ( 91.7 kg Mass, ID: 254 mm OD: 508 mm WD: 95.25 mm , TP Series , Two or Three Rows , PN (ABEC-1) Accuracy Class , bearing steel Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 100 TP 145. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.
