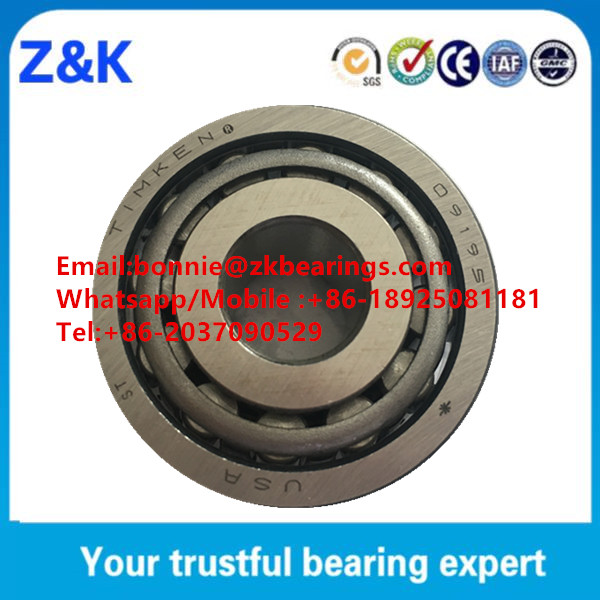

09062-09195 Tapered Roller Bearings For Machinery

🔍

09062-09195

Bore Diameter:15.875 mm

Outside Diameter:49.225 mm

Width:21.539 mm

Min. Order:1 Piece

The 09062-09195 bearing is a Tapered Roller Bearings with an inner diameter of 15.875 mm , an outer diameter of 49.225 mm, a width of 21.539 mm. It typically uses p0/p6/p5/p4/p2 grade precision tolerances and features a Steel cage, Steel balls, Steel rings. It primarily bears Radial Bearing, Its dynamic radial rated load is approximately 42800, its static radial rated load is approximately 40500. It uses C0 C2 C3 C4 C5 standard radial clearance, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Feature: High speed, low voice & long life.

Application: Automotive, rolling mill, mining, metallurgical, skateboard etc.

Dimensions:

Inside Diameter:

15.875 mm

Outside Diameter:

49.225 mm

Thickness:

21.539 mm

Chamfer (R):

0.8

Cone Width (B):

21.539

Cup Width (C):

14.288

Chamfer (r):

1.27

Performance Data:

Dynamic load Capacity, Radial (Cr):

42800

Static load Capacity, Radial (Cor):

40500

Specifications:

HS Code:

8482102000

Structure:

roller Bearing

Number of Rows:

Single

Demensions:

15.875*49.225 *21.539

Brand:

Z&K/Neutral / OEM

Radial Clearance Trade No.:

C0 C2 C3 C4 C5

Precision Rating:

p0/p6/p5/p4/p2

Vibration:

Z1V1 Z2V2 Z3V3

Load Direction:

Radial Bearing

Bearing Material:

Bearing Steel

Cage material:

Steel

Ball Material:

Steel

Roller Material:

Steel

Series:

09000

Cone Number:

09062

Cup Number:

09195

Transaction Information:

Transport Package:

Single Box, Plastic Barrel, Carton, Tray

Shipping Ways:

Sea, land and air transport

Country of Origin:

China

Stock:

1000 Piece

Production Capacity:

10000/year

Port:

Guangzhou

Payment term:

TT/PAPAL/WESTERN UNION

Delivery time:

7-15

Detailed description

09062-09195 Tapered Roller Bearings for Machinery
09062-09195 Tapered Roller Bearings for Machinery
Bearing NO.:	09062-09195	Da (mm):	44.5
Material:	Bearing steel	Db (mm):	41.91
Series:	09000	Ab (mm):	1.5
Cone Part NO.:	09062	db(mm):	22
Cup Part NO.:	09195	da (mm):	21.5
Bore (mm)d:	15.875	Aa(mm):	1.8
Cup Outer Diameter(mm)D:	49.225	R(mm):	0.8
Cone Width(mm)B:	21.539	r (mm):	1.27
Cup Width(mm)C:	14.288	a:	-9.1
Bearing Width (mm)T:	19.845	K:	2.2
Dynamic load rating (C90)N:	11100	e:	0.27
Dynamic load rating (C₁)N:	42800	Y:	2.26
Static Radial Rating(CO)N:	40500	Cg:	0.0452
Dynamic Thrust Ratin(Ca₉₀)N:	5050	Category:	Tapered Roller Bearings
Applicable Industries:	Manufacturing Plant,Home Use, Printing Shops,Construction works,Advertising Company	Contact Bonnie:	Email:[email protected]
Applicable Industries:		Contact Bonnie:	Email:[email protected]
