02-0545-03 Internal Gear Teeth Slewing Bearing

🔍

02-0545-03

Bore Diameter:426 mm

Outside Diameter:640 mm

Width:56 mm

Weight:61 kg

The 02-0545-03 bearing is a Slewing bearing / Slewing ring with an inner diameter of 426 mm , an outer diameter of 640 mm, a width of 56 mm. It typically uses P0-P5 grade precision tolerances and Rubber type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

426 mm

Outside Diameter:

640 mm

Thickness:

56 mm

Weight:

61 KG

Specifications:

Structure:

Four-point Contact Ball bearing

Precision Rating:

P0-P5

Bearing Material:

50Mn

Seals Type:

Rubber

Transaction Information:

Payment term:

30% T/T in Advance, the balance 70%TT before shipp

Delivery time:

Detailed description

Bearing model: 01-0545-00 Four-point Contact Ball bearing

Inner Diameter (ID):426mm
Outer diameter (OD):640mm
Width/Height: 56mm

Internal Gear Teeth

Moudle: M=5

NO. of teeth: Z=86

Pressure Angle: a=20°

Modification coefficient: X=+0.5

Material:50Mn

Weight:61kg

Seals type: Rubber

Lubrication: Grease

Share this product to:

Let more people see your product

How can you buy 02-0545-03 Internal Gear Teeth Slewing Bearing on the Internet?
High quality 02-0545-03 ( 61 kg Mass, ID: 426 mm OD: 640 mm WD: 56 mm , P0-P5 Accuracy Class , 50Mn Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 02-0545-03. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- 546DBS146y Four-point Contact Ball Slewing bearing with innter gear
- It is widely used in hoister transportation, mining, architecture, harbor machinery, shipping
- 9E-1Z25-1468-1251 Crossed Roller Slewing Bearing With External Gear 1330/1591.7/115mm
- Slewing bearings are widely used in hoister transportation, mining, architecture, harbor machinery,
- VLA 20 0844N External Gear Teeth slewing bearing
- Bearing model:VLA 20 0844N Four-point Contact Ball bearing Inner Diameter (ID):734mm Outer diameter (OD):950.1mm Width/Height:
- 10-201091/0-02072 Four-point Contact Ball Slewing Bearing 1022mmx1166mmx56mm
- Slewing bearings are widely used in hoister transportation, mining, architecture, harbor machinery,radar
- CRBC 20025 Thin-section Crossed Roller Bearing
- Bearing model:CRBC 20025 Thin-section crossed roller bearing Inner Diameter (ID):200 mm Outer diameter (OD):260
- CSXA042 CSEA042 CSCA042 Thin-section ball bearing
- Bearing model: CSXA042 CSEA042 CSCA042 Thin-section Ball bearing Inner Diameter (ID):4.25

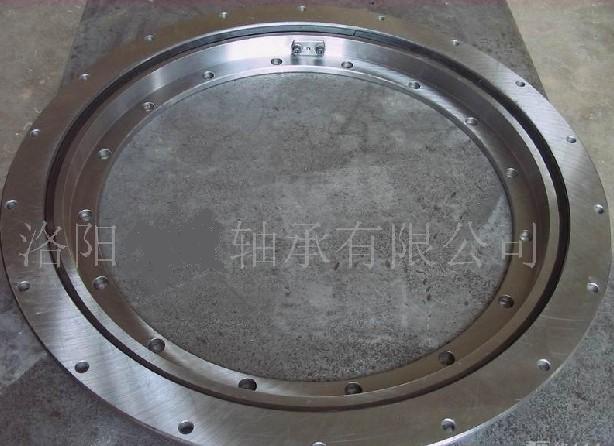

- KDL 900-6 Slewing bearing
